OCEANUS ROV ACCESSORIES
MarineNav ROV systems accept a wide range of ROV accessories that increase the functionality of the ROV to perform mission tasks specific to your individual need. We design and manufacture manipulators, cutting tools, ROV hull crawlers, external custom mounting brackets and other ROV attachments. Speak to us regarding bespoke ROV accessories designed for your industry's needs.
Oceanus ROV systems support a growing selection of third-party ROV attachments, such as sonar systems and various tracking and positioning systems. Contact us for more information.
MarineNav's rotating manipulator with four detachable head attachments.

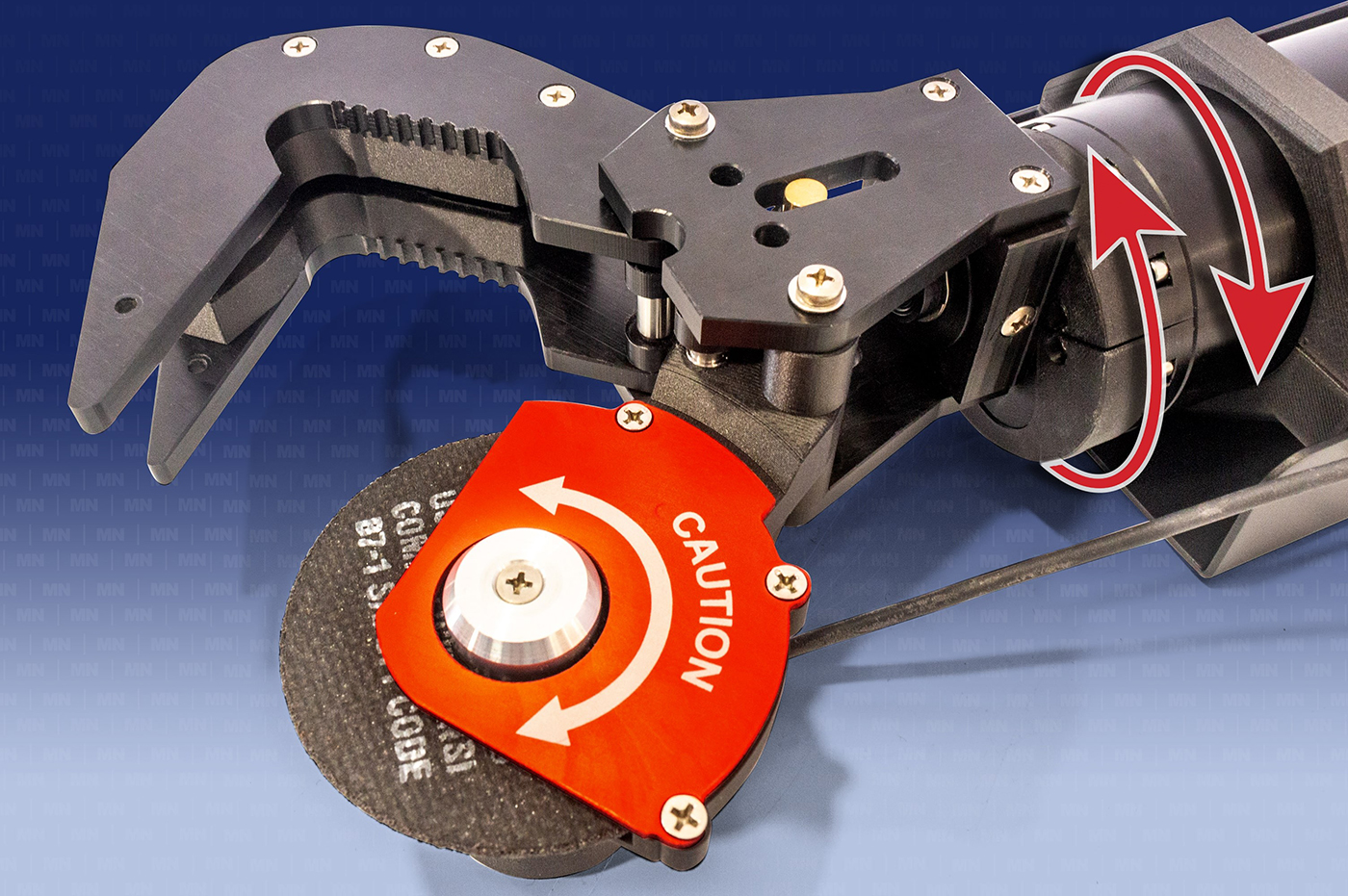

Cutting tool attachment head. Designed for the rotating manipulator (not included).

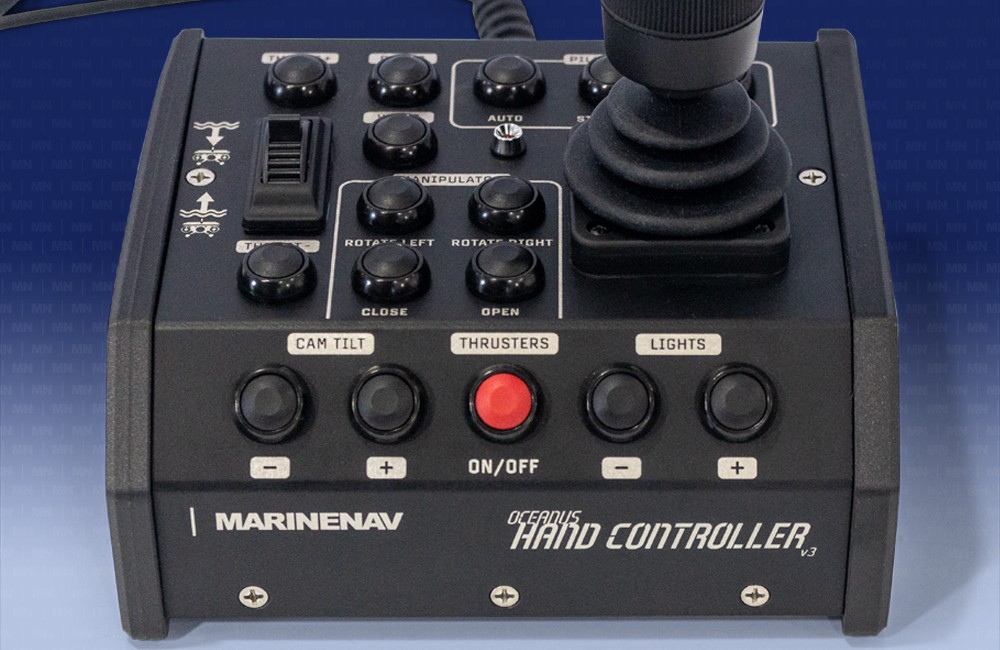

MarineNav's Oceanus Hand Controller (v3.0). An optional ROV system upgrade provides ROV pilots access to more ROV functions.

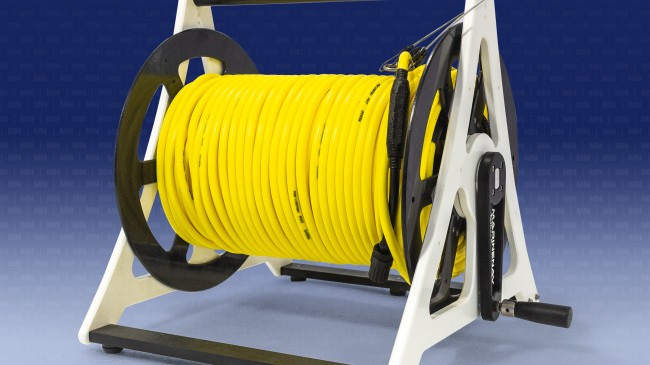

MarineNav's standard Tether Deployment System (tether not included).

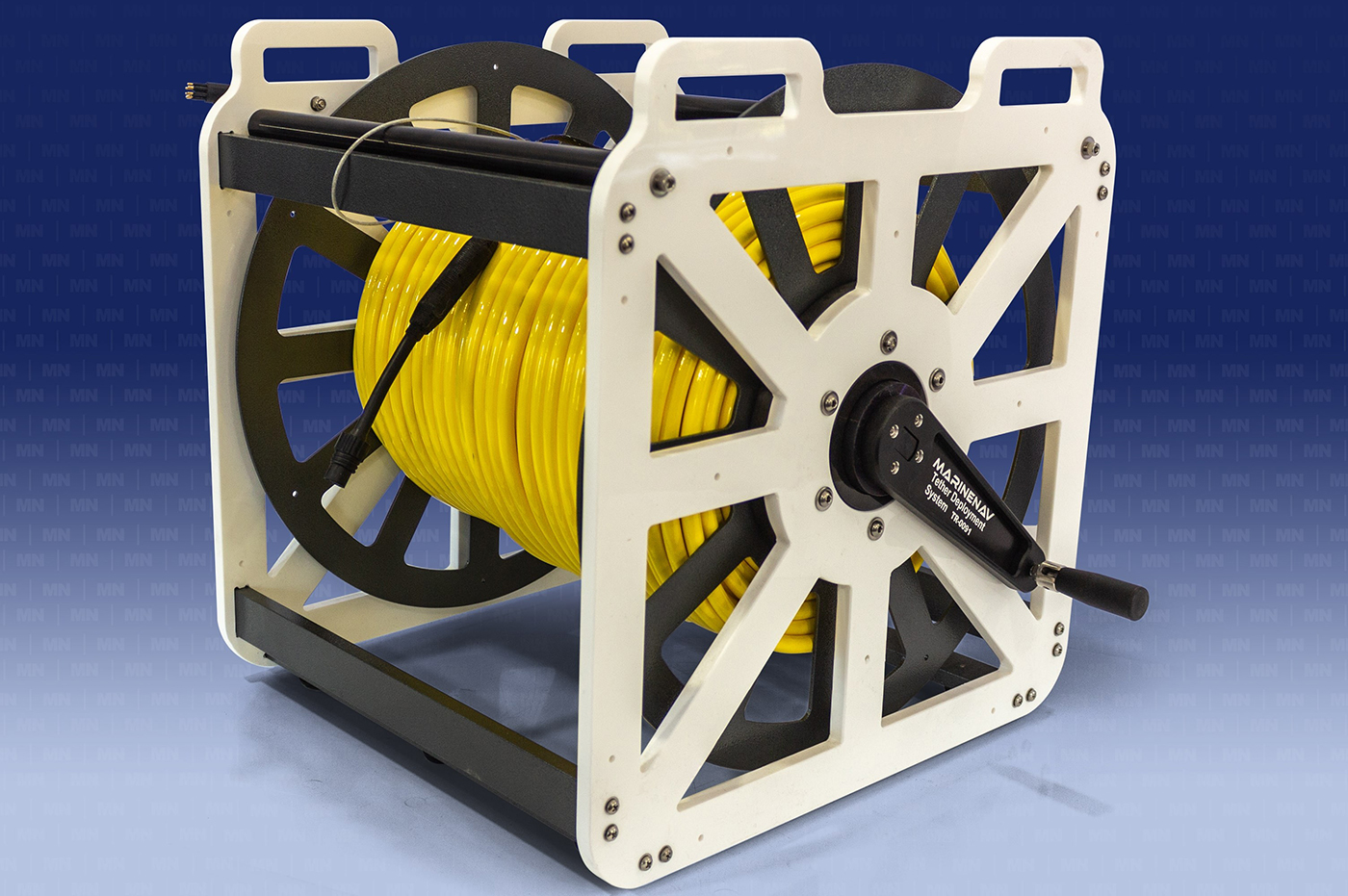

MarineNav's mid-size Tether Deployment System (tether not included).
The MarineNav large Tether Deployment system (tether not included).
HC2 Hull Crawler allows ROV to glide effortlessly against a vessel hull for controlled visual inspections
Oceanus ROV Gaff Pole is indispensable when retrieving ghost gear, lost mooring chain or underwater cable.
A compact, self-contained water resistant case organizes and protects essential ROV accessories.
MANIPULATOR ARMS & HEAD ATTACHMENTS
Ideal for reaching inaccessible areas to grasp and move objects MarineNav designs and manufactures two manipulator arms. Choose from single-axis manipulators or select a dual-axis manipulator with 360° rotation. MarineNav's manipulators provide precise control and are fully compatible with our Oceanus class ROVs. Simple plug-and-play functionality provides control of manipulators through our topside software user interface and connected Oceanus hand controller.
All MarineNav products are designed, manufactured, and assembled at our facility on Panmure Island, Prince Edward Island, Canada.
Phone: +44 (0) 1330 705050
Email: info@raiseinnovations.com

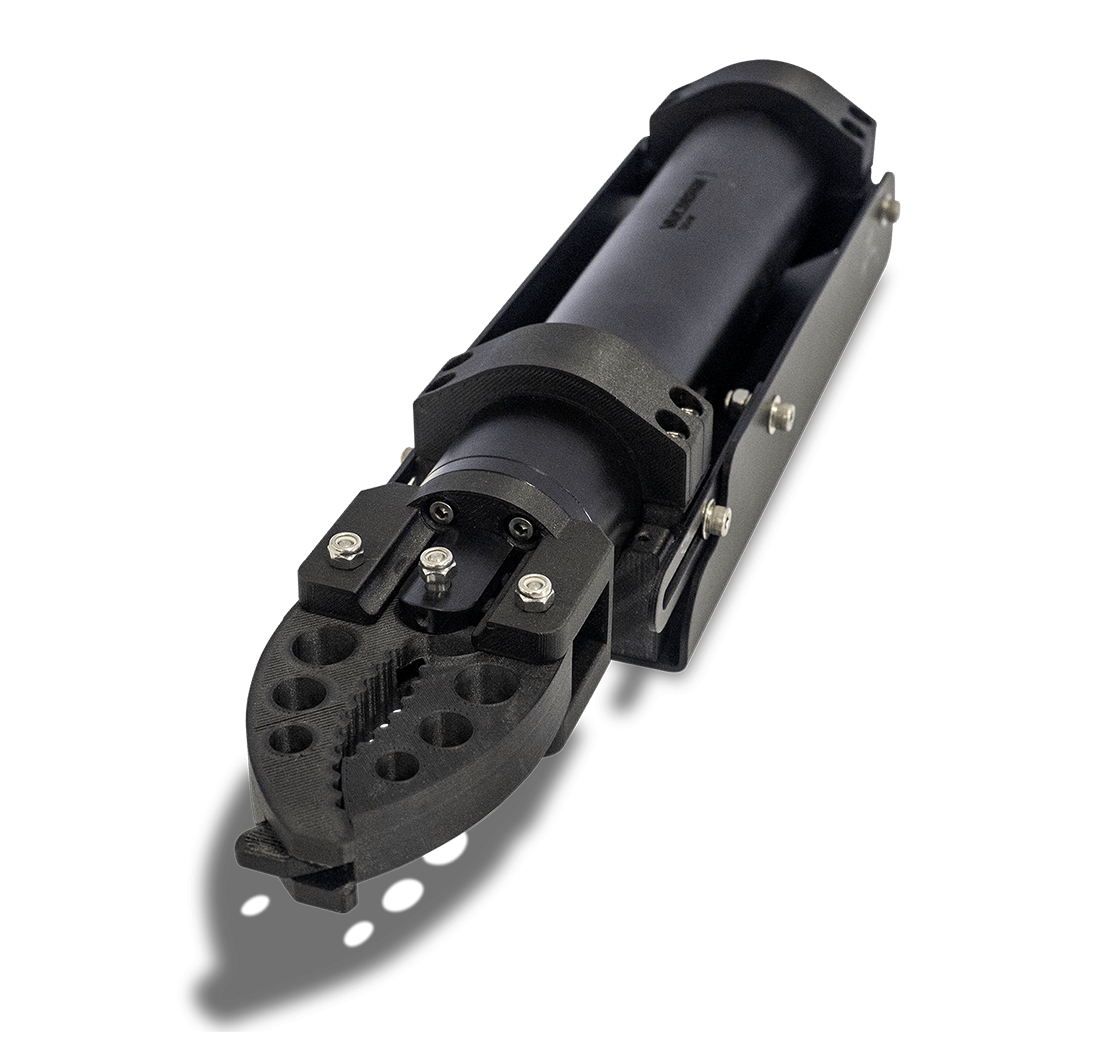

SINGLE AXIS MANIPULATOR ARM
MarineNav's ROV single-axis manipulator is an essential addition to increasing the functionality of your ROV, providing power and precision to perform gripping and recovery maneuvers to a depth of 300 meters.

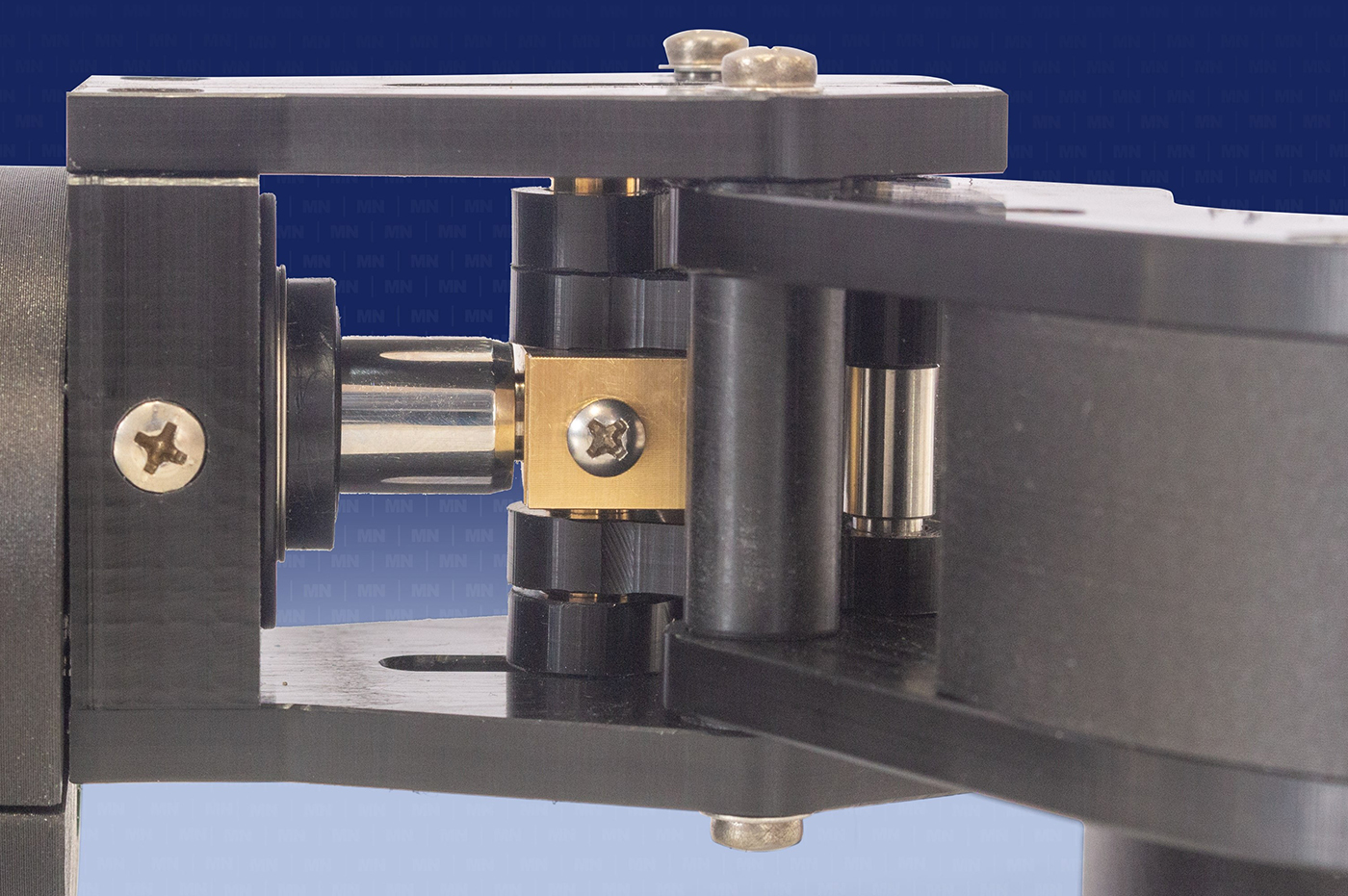

ROTATING MANIPULATOR ARM WITH INTERCHANGEABLE HEADS
Our dual-axis manipulator with four swappable unique jaw head attachments features jaw heads manufactured from carbon fibre-reinforced composite material. Designed to work with the manipulator’s open and close motions and 360º continuous rotational movement.

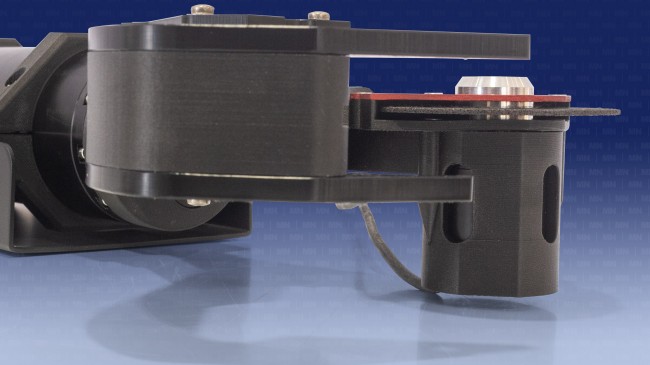

ROTATING MANIPULATOR CUTTING TOOL HEAD ATTACHMENT
A 3" cutting blade and mandible claw provide all the power and precision required to cut through rope up to 2" in diameter.
CUSTOM MANIPULATORS-MADE-TO-ORDER
MarineNav's on-site design and manufacturing capabilities mean we can accessorize your Oceanus ROV with a custom manipulator system built for your specific need. Enquire about manipulator options.

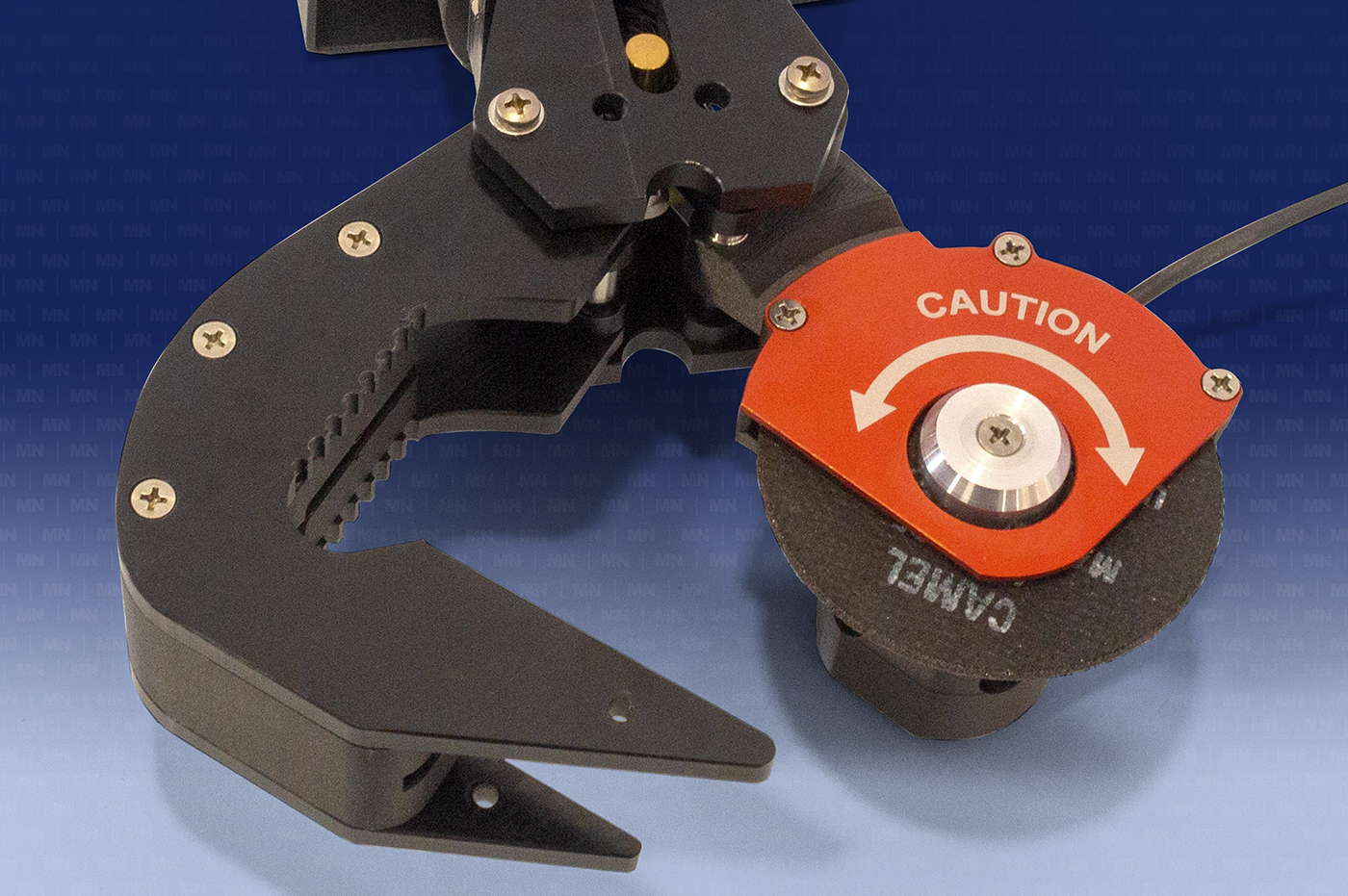

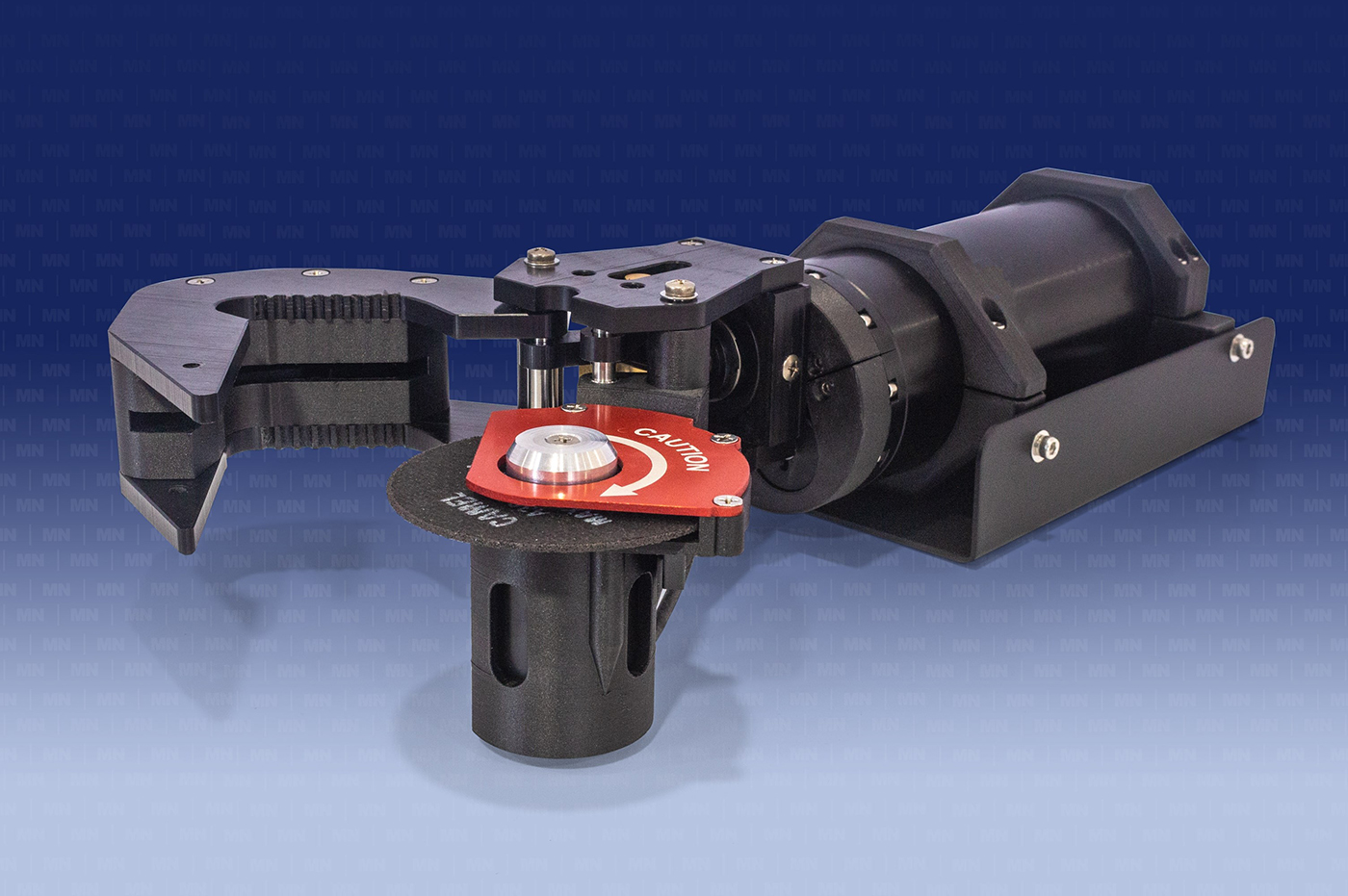

ROTATING MANIPULATOR CUTTING TOOL HEAD
Constructed of carbon fibre-filled nylon and durable marine-grade acetal, the cutting tool head attachment is designed to accommodate a variety of 3" diameter blades allowing users to cut through a variety of materials including rope of up to 2" diameter. The serrated mandible firmly holds material in place and the closing action of the cutting blade controls the depth of cut. A grooved channel in the mandible ensures cutting blade will not damage the cutting tool, and a protective cutting blade shield protects the ROV from flying debris.
All products are designed, manufactured, and assembled at our facility on PEI, Canada.
Phone: +44 (0) 1330 705050
Email: info@raiseinnovations.com
Constructed of carbon fibre-filled nylon and durable marine-grade acetal
The serrated mandible firmly holds material in place and the closing action of the cutting blade controls the depth of cut.
Rotating arm attachment heads are easily swapped out with a minimum of tools required.
The cutting tool is pictured with a 3" grinding wheel.
The cutting tool head attachment is designed to accommodate a variety of 3 inch cutting wheels
Cut through a variety of materials including rope of up to 2 inches
NEAUTRALLY BUOYANT ROV TETHER
MarineNav ROV systems are rated to a maximum standard depth of 300 meters, but tether segments can be purchased at greater lengths. Single cable segments are available to a maximum length of 500 meters. If you are joining two tether cable segments together, the maximum length allowed is 450 meters. If you are joining three cable segments together, the maximum length allowed is 400 meters
MarineNav ROV systems are rated to a maximum standard depth of 300 meters, but tether segments can be purchased at greater lengths. Single cable segments are available to a maximum length of 500 meters.
TETHER DEPLOYMENT SYSTEMS
MarineNav produces Tether Deployment Systems capable of storing up to 600m of ROV tether. All TDS products provide controlled deployment and retrieval of ROV tether minimizing the risk of entanglements or damage. TDS products are easily transported with the larger self-contained TDS designed with built-in wheels.

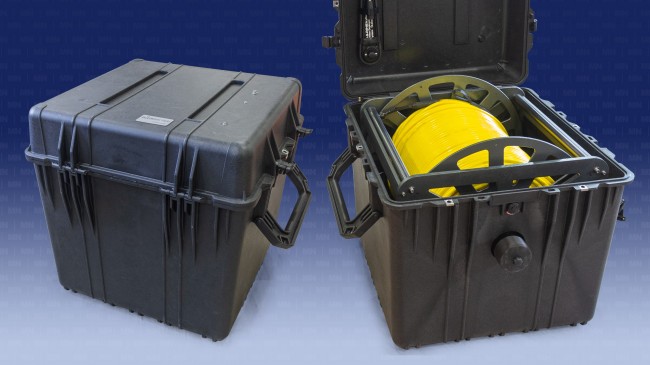

The MarineNav standard Tether Deployment system is a portable tether management reel capable of controlled deployment and retrieval of tether lengths of up to 180m (590 ft).

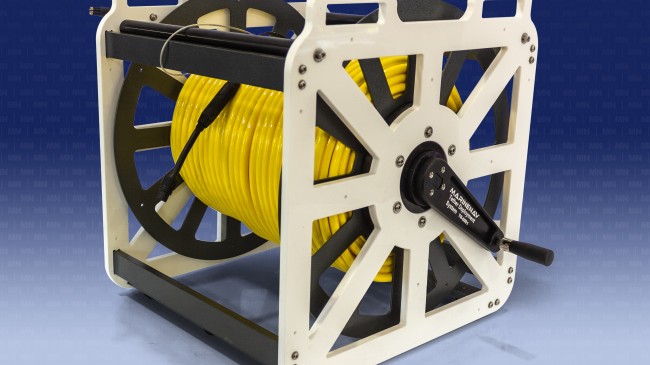

The MarineNav mid-size Tether Deployment System is capable of storing 350m (1148 ft) of ROV tether on its reel. A redesigned tether deployment roller mechanism ensures smoother deployment and retrieval of the ROV tether.
The MarineNav large Tether Deployment system is a wheeled self-contained tether management reel capable of controlled deployment and retrieval of tether lengths of up to 600m (1969 ft).

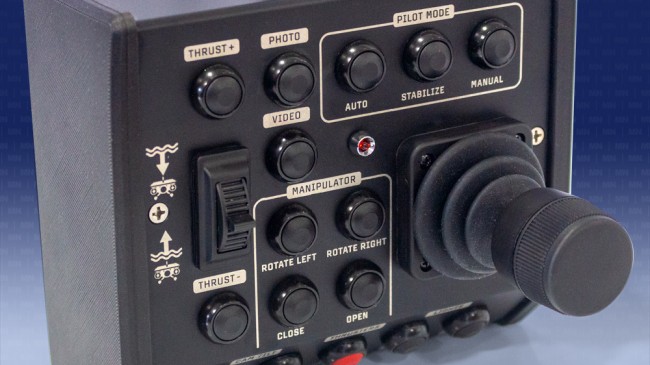

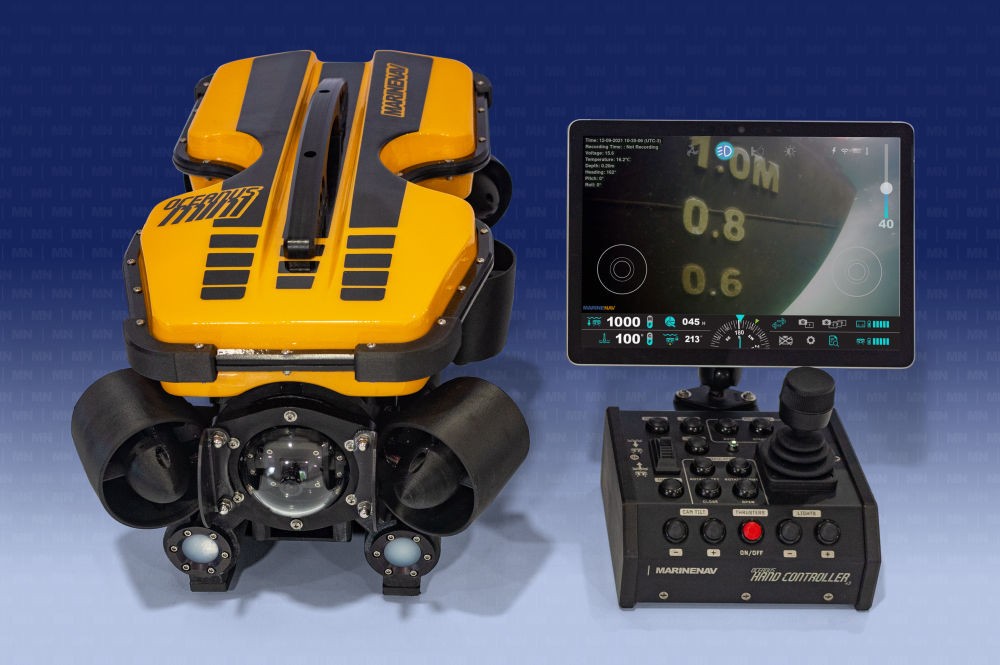

OCEANUS HAND CONTROLLER (V3.0)
The Oceanus v3.0 hand controller has been specifically designed for use with MarineNav's Oceanus Mini and ROV systems outfitted with a rotating manipulator attachment. The v3.0 hand controller features the same three-axis hall-effect joystick found in our other hand controllers and an expanded ROV command button configuration that provides pilots access to more ROV functions. An adjacent thumbwheel on the primary control panel enables pilots access to the ROV depth control without the need to reposition their hands.
We design, manufacture and assemble all products at our facility in PEI, Canada.
Phone: +44 (0) 1330 705050
Email: info@raiseinnovations.com
Hand Controller fully integrated with topside FCS software
Hall effect joystick and depth control thumbwheel control ROV momentum.
The v3.0 hand controller is compatible with the Mini-Lite ROV system
A bespoke mounting bracket with a positionable swivel arm connects to your Mini-Lite ROV viewing tablet.
Manufactured from Marine-grade materials
IP rated for harsh weather environments. Rugged construction to withstand drops or impacts.
Built-In safety feature
A thruster On/Off button acts as a kill switch. Useful for disengaging thrusters during routine maintenance.
Designed for ease of use
The Hand Controller fits comfortably in hands with easy access to all button functions.
MISCELLANEOUS ROV ACCESSORIES
Protect your ROV investment with these essential accessories.

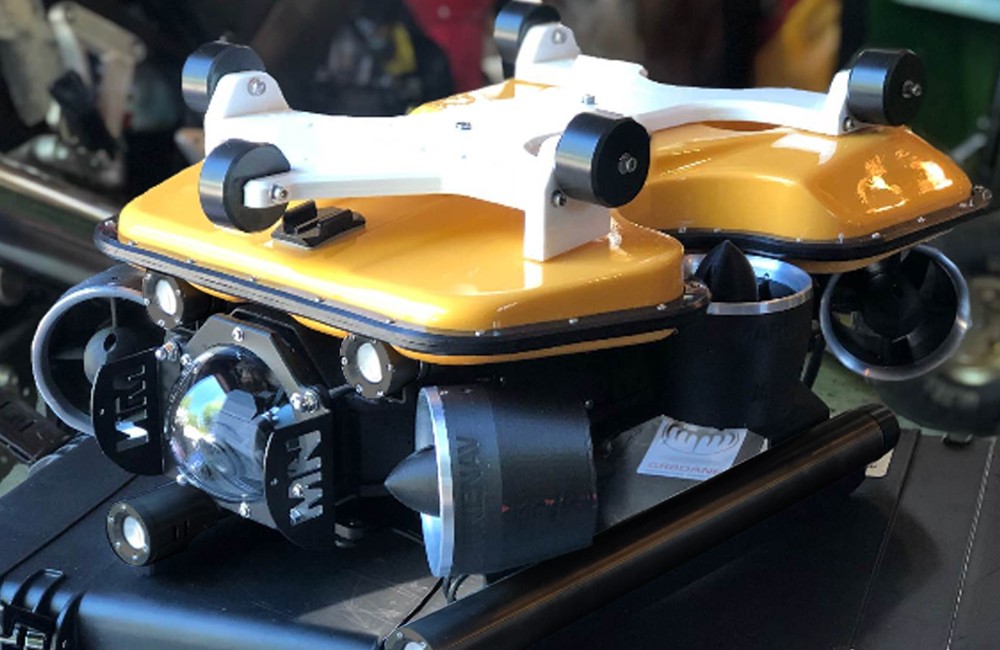

Hull Crawlers
Mounting to the float block, MarineNav's Hull Crawler positions the ROV against a vessel's hull or other smooth surfaces to create a secure connection allowing for improved ease of inspection. This device improves the pilots' ability to maintain position and safely navigate a vessel's hull.
Watch the demonstration video >

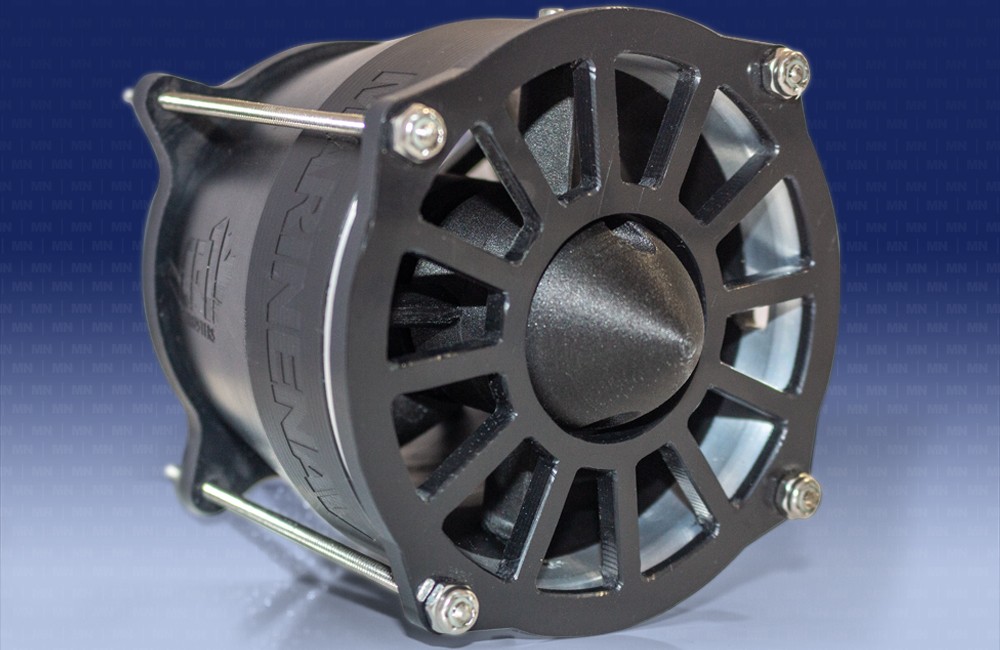

Thruster Guards
Designed by MarineNav and manufactured on-site, the Oceanus thruster guard minimizes potential damage when foreign debris becomes entangled in the ROV thruster propellers. The thruster guard is constructed from marine-grade materials and is designed to fit over the thruster assembly without affecting propeller motion and is locked in place by four threaded bolts and fasteners. Installation is simple, requiring a minimum of tools and time.
ROV Gaff Hook
Compatible with Pro and Ultimate class series ROV systems, the Oceanus ROV Gaff Pole is indispensable when retrieving ghost gear, lost mooring chain or underwater cable.
- Manufactured from aluminum and marine-grade materials.
- Weighs 1.63 kg (3.6 Lb).
- Locking mechanism keeps snagged gear clear of ROV thrusters intake.
- Extra long arm with buoyancy chamber offsets the weight of snagged gear.
- 2-year limited warranty*
External ROV Mount Brackets
MarineNav designs and manufactures a variety of external ROV mount brackets for third-party accessories such as camera systems, lights, sonar and DVL systems. Contact us regarding bespoke bracket solutions. Our design team will work with you to develop design solutions that provide a secure connection of your third-party accessory to our Oceanus ROV platform.
Additional MarineNav ROV attachments
- Stainless ROV dockside deployment and recovery hook
MarineNav's lightweight gaff is outfitted with a large hook suited to reach over the side of a vessel or dock to snag an ROV tether.
- ROV skid feet with built-in wheels
Replace your ROV's existing skids with this ROV accessory. ROV skid feet with built-in wheels allow your ROV to glide effortlessly against a smooth surface. Minimize contact friction, and minimize potential ROV damage.

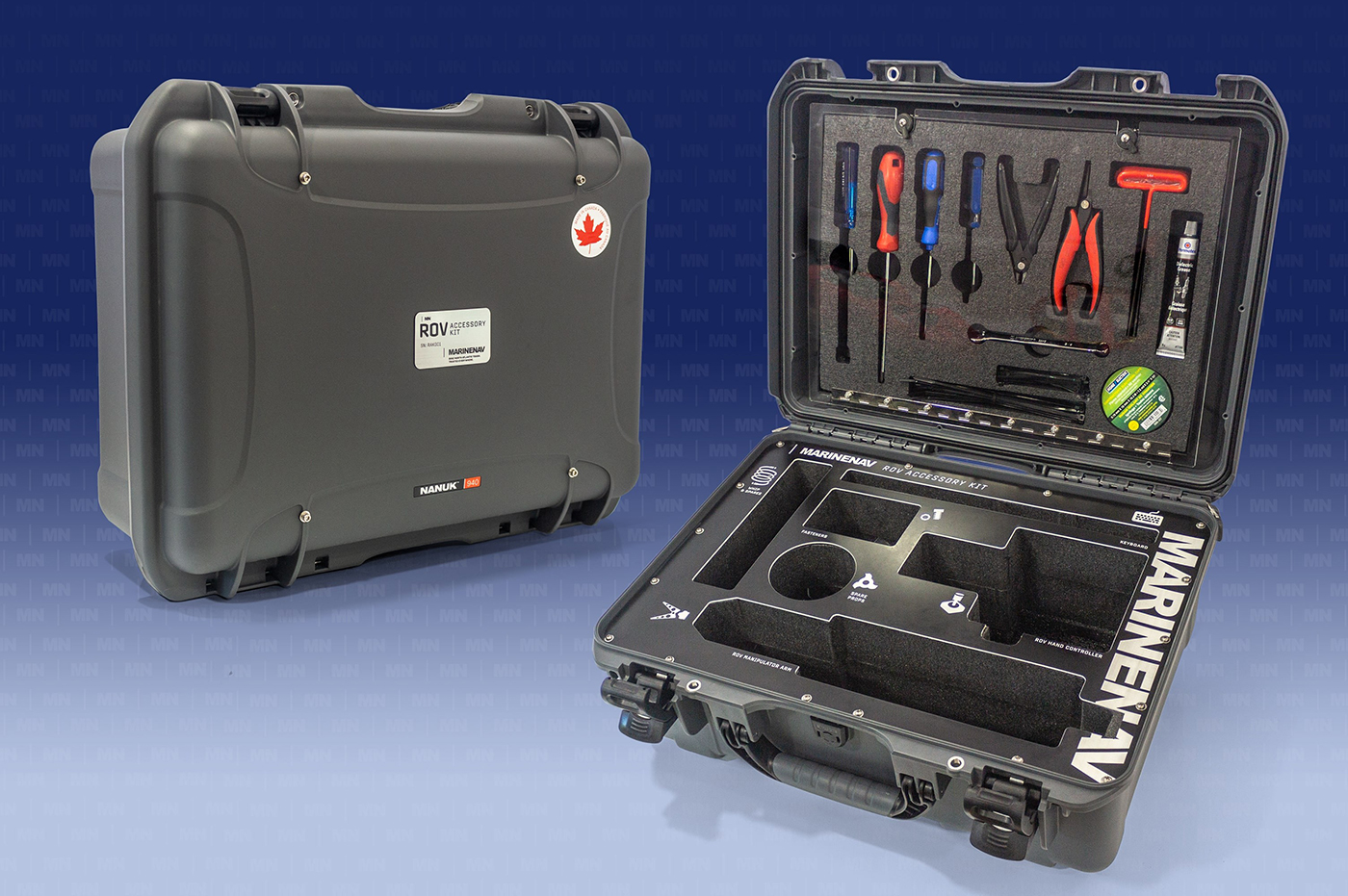

- MarineNav ROV Accessory Kit Case
A ruggedized IP-rated case built to order that includes an ROV tool kit for essential on-site ROV maintenance. Bespoke foam inset designed to carry your ROV add-ons such as extra propellers, wireless keyboard or joystick. Compact and easily transported by a single person.
- Externally mounted cameras and camera mounts
Contact us for available options for external mount cameras and bespoke camera mounts.
- Externally mounted lights
MarineNav designs and builds bespoke lighting grids that provide extra illumination for dives at greater depths. Contact us and let us develop a customized lighting solution for you.
THIRD-PARTY ROV ACCESSORIES
Oceanus ROV systems accept an increasing variety of popular third-party ROV accessories. Our ROVs feature built-in AUX ports that allow the configuration of multiple accessories (dependent upon the class of Oceanus ROV). MarineNav's Flight Control System software works seamlessly with many popular third-party accessories. Contact us to discuss if your third-party ROV accessory is supported by our ROV systems.
Phone: +44 (0) 1330 705050
Email: info@raiseinnovations.com
SONAR SYSTEMS
Accessorize your ROV with sophisticated sonar systems to optimize ROV functionality in low-visibility situations. View Sonar imaging through the topside control case's video display monitor, with the option to record streaming data for future playback and analysis.
MarineNav supports many popular brands of third-party sonar systems, including popular models from globally recognized manufacturers Tritech and Blueprint Subsea. Check ROV specifications for compatibility.
Contact us for more information.
Featured Sonar Systems
- Tritech Gemini 720im multibeam sonar
The Gemini 720im fuses Tritech’s Gemini multi-beam technology with Tritech’s Micron technology to create the world’s smallest multi-beam imaging sonar.
- Tritech Micron DST
The Tritech Micron Sonar is the smallest digital CHIRP sonar in the world and is ideal for small ROVs as a first-rate obstacle avoidance sonar in miniature form.
- Tritech Gemini 720ik
The Gemini 720ik is a real-time, high-frequency multi-beam imaging sonar. Utilizing Tritech’s advanced processing electronics, at the 1m range, the sonar offers a world-class 97Hz update rate to produce high-quality, video-like imagery.
- Blueprint Subsea Oculus
The Blueprint Subsea Oculus is a real-time, high-frequency multi-beam imaging sonar system. At the 1m range, the sonar offers a world-class 97Hz update rate to produce high-quality, video-like imagery.
- Alternate sonar systems
Contact us regarding any other sonar system you may want to incorporate with one of our ROV systems. Whenever possible, our ROV specialists will work with you to accessorize your ROV purchase with the third-party sonar system of your choosing
METAL THICKNESS GAUGE
Measure metal thickness even through coatings with ultrasonic metal thickness gauges. The probe does not need to touch the surface under test, as the metal thickness gauge captures reading measurements through 5 mm (0.2 inches) of water. Metal thickness probe orientation does not influence gauge readings. Contact us for more information.
TRACKING & POSITIONING SYSTEMS
Underwater searches and surveys often require precise positioning of the ROV to be known so that observations can be geo-referenced on future dive missions. MarineNav supports several acoustic and tether-based position-tracking systems.
Customize your ROV with additional third-party ROV accessories
- 5-axis manipulator arm
Complex manipulators for complex tasks. Precision manipulator control and unparalleled accessibility when performing underwater missions.
- Cavitation cleaners
Cavitation cleaner-fitted ROVs perform efficient bio-foul removal that typically requires expensive dive teams.
- Laser spot devices
Accessorize your ROV with single or multipoint lasers for scale, reference or distance.
- Cathodic protection probes
Use Stab or proximity probes to measure the cathodic protection of subsea assets.
- Various RS485 or Ethernet-based accessories
ROV REPLACEMENT PARTS
With all of our ROV systems designed and manufactured on-site, we can supply our ROV customers with an extensive inventory of ROV replacement parts. Easily replace many ROV replacement parts with a minimum amount of time and with a minimum number of tools. Our knowledgeable ROV technicians are available to offer support for any ROV part replacement.
Download a current list of available ROV replacement parts, or contact us if a bespoke replacement part not listed is required.
