OCEANUS PRO

OCEANUS PRO ROV SYSTEM

Capable of deep-dive missions, the Oceanus Pro is our most popular ROV system, favoured by commercial industries and government agencies for its rugged durability, customization options and value for the cost.

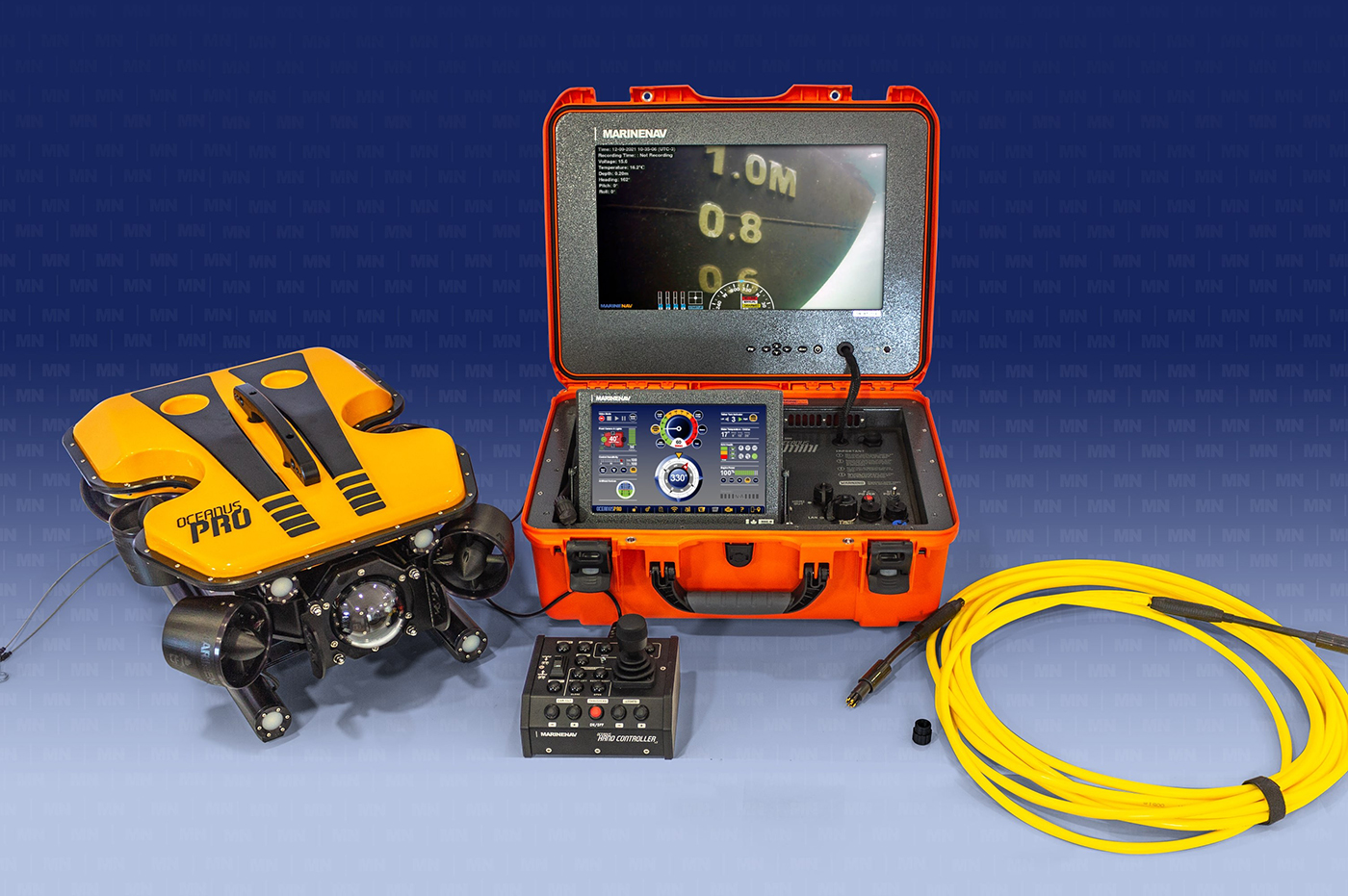

Oceanus Pro ROV with topside control unit and Oceanus hand controller (v3.0)

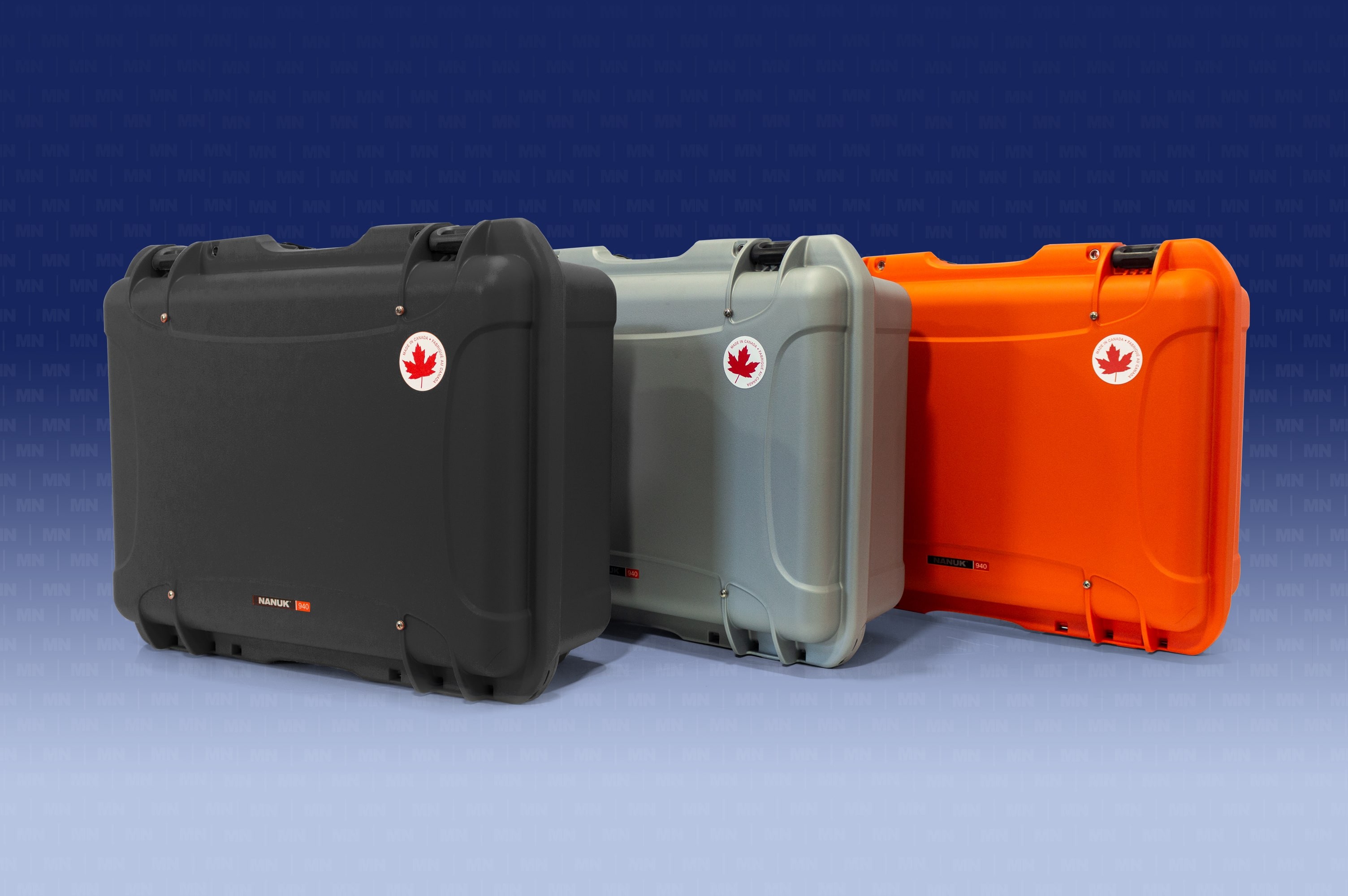

IP rated rugged topside control cases available in a variety of colours (based on available inventory)

The Oceanus Pro is MarineNav's best-selling ROV system

Oceanus Pro ROV system (tether sold separately)

The Topside Control System is the operational hub of the ROV system

A compact ROV weighing less than 18 kg

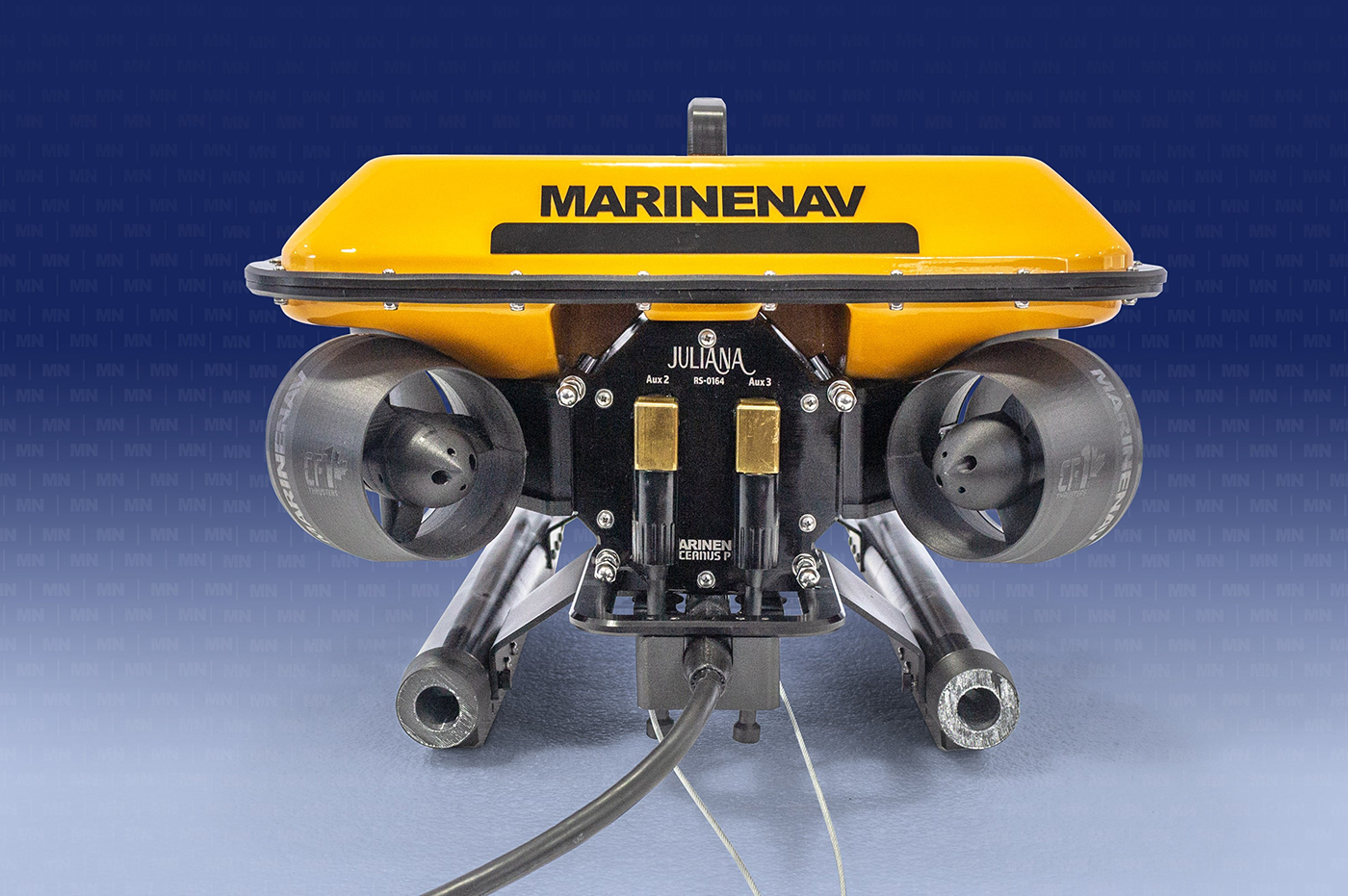

Easily accessed connection ports and ballast tray

605 mm long, 418 mm wide, 279 mm height

Constructed of marine-grade materials, with the majority of components manufacture on-site

Rugged marine-grade hand controller (v3.0) included with the Oceanus Pro ROV system



MarineNav's Oceanus Pro ROV system includes the following:

  • Oceanus Pro ROV
  • Oceanus Mini/Pro ROV Topside Control system
  • Proprietary ROV Flight Control System software
  • Oceanus Handheld Controller / Joystick (v3.0)
  • A multi-function wireless keyboard
  • 26-ballast weight bolts and nuts
  • An AC power cable and IP65 HDMI cable
  • Spare fasteners kit
  • IP-rated rugged hard-shell transport cases
  • Operator manual and documentation
  • MarineNav's 2-year limited warranty*

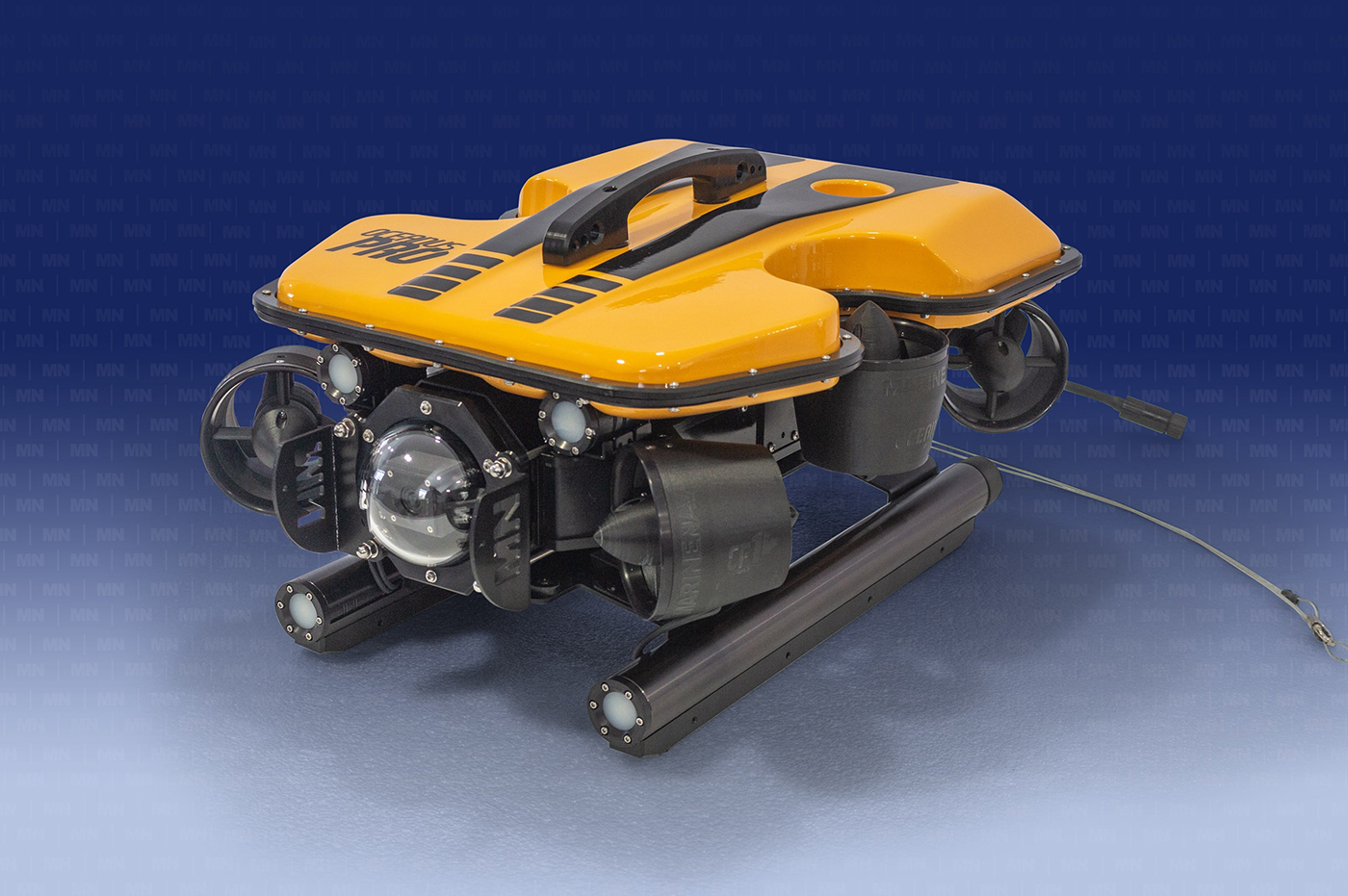

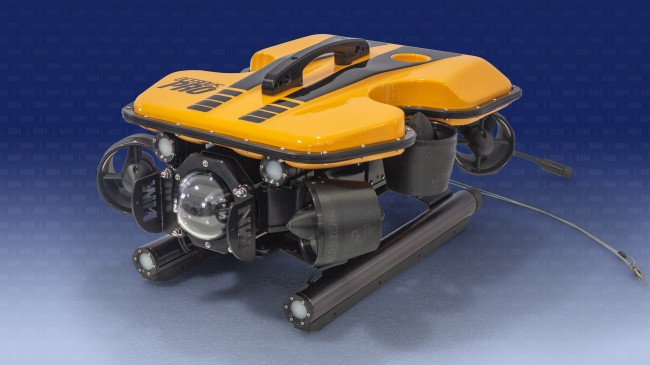

MarineNav's Oceanus Pro ROV



Mission-ready ROVs with a wide range of available attachment options

Includes the Oceanus Pro ROV, the Oceanus Mini / Pro Topside Control Case system and the Oceanus Hand Controller (v3.0)

Designed, engineered, and manufactured on-site, MarineNav's Oceanus Pro ROV weighs only 17.91 kg (39.5 Lb) and measures 605 mm (23.82") in length. It features rugged core construction of marine-grade anodized aluminum and other marine-grade components. The Oceanus Pro ROV is easily deployed and operated by one person and piloted in fresh or salt water, 0-50°C (32-122° F). The Oceanus Pro has been independently certified to operate to a maximum standard depth of 305 m (1000 ft). Achieve dive depths of 400m (1312 ft) with an optional system upgrade.

Six vectorized thrusters provide powerful thrust performance delivering top speeds of up to 6 knots with the ROV capable of vertical depth and horizontal lateral movement (Auto depth, heading hold, and ROV stabilize modes are standard features). A full HD 1080p internal front camera with camera tilt of +/- 180° pitch (vertical rotation), a one-touch video record function with overlay feature, and four front-facing 1500 Lumen lights ensure the ability to capture brilliant video without interruption of piloting the ROV system.

Standard Features include

  • LATERAL AXIS ROV MOVEMENT

    An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability.

  • POWER OVER TETHER

    No onboard battery means virtually unlimited dive times.

  • MAXIMUM SPEED OF 6 KNOTS

    (Maximum speed test conducted with ROV fitted with performance float block and absence of all ballast weights).

  • DEPTH RATING OF 305m (1000 ft)

    ROV is independently certified to a depth of 305m (1000ft). Optional upgrade to 400m (1312 ft).

  • ROV WEIGHT OF 17.91 kg (39.5 Lb)

    (Excludes weight of ROV ballast weights, tether whip, ROV tether and any ROV accessory).

  • OCEANUS JOYSTICK HANDHELD CONTROLLER (V3.0)

    Joystick Handheld controller constructed from marine-grade aluminum with integrated function keys, a conveniently positioned thumbwheel and a hall-effect joystick that controls essential ROV functions.

  • 1080P HD VIDEO CAMERA SYSTEM

    High definition camera with +/- 180° tilt functionality provides stunning image captures. 120° field of view and camera focus range from the face of the housing dome to infinity with manual control. Demonstration video.

  • 4 X 1500 LUMEN FRONT LIGHTS

    Four front-facing ROV lights with phased brightness control when using topside Flight Control Software or with button commands through the Oceanus hand controller (v3.0).

  • FLEXIBLE ATTACHMENT OPTIONS

    The Oceanus Pro ROV has three built-in auxiliary ports to work with a wide range of MarineNav and third-party ROV accessories. (1 x ethernet, 2 x RS485 / Manipulator / 12V / 24 DC / aux camera).

  • WIDE-SCREEN VIDEO DISPLAY

    18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.

  • 500GB SOLID-STATE DRIVE TOPSIDE

    The topside control case features a large built-in SSD which stores hours of content

  • TOUCH-SENSITIVE USER INTERFACE

    Our proprietary Flight Control System software user interface is a touch-sensitive array of command modules that display all essential ROV functions on a secondary 10.1-inch TFT touch active matrix panel (1000 nits brightness, full daylight readable, 1280 x 800 resolution).

  • ON-SCREEN DISPLAY (OSD)

    Real-time data includes: recording time, voltage, water temperature, depth, date/time stamp, heading and attitude is overlaid or embedded with video. Operator input lines are available. GPS coordinates are displayed as an overlay option when paired with an accessory, enabled data entry field with a customized logo available.

  • SETTINGS

    Internally saved, persist through power cycles.

  • OCEANUS MULTIPORT

    Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors.

  • HDMI VIDEO OUTPUT

    Share streaming data captured by the ROV's onboard camera to an external HD monitor by conveniently connecting via the topside HDMI video output port.

  • WIRELESS BROADCASTING FEATURE

    ROV pilot can share streaming video to multiple parties with access to web-enabled devices via a simple built-in interface

  • OPTIONAL MARINENAV FLEET MANAGEMENT SUITE

    Monitor the status and health of the ROV remotely for complete asset management of one or multiple systems.

  • COMPREHENSIVE COVERAGE

    MarineNav's Peace of Mind Guarantee and 2-year limited warranty provide extended coverage on your purchase.*
