OCEANUS MINI-LITE ROV SYSTEM

Our smallest and most affordable ROV system features a topside control hub with a built-in, removable tablet ROV controller.

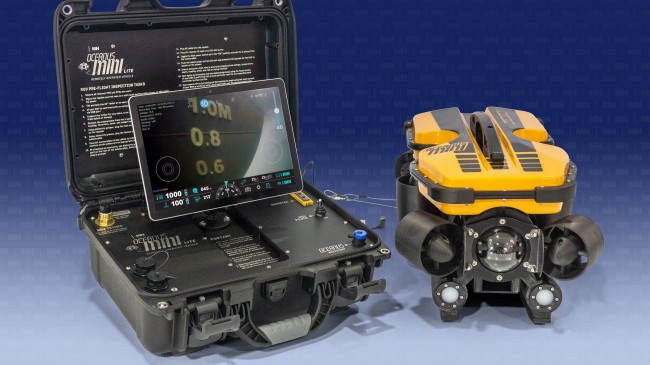

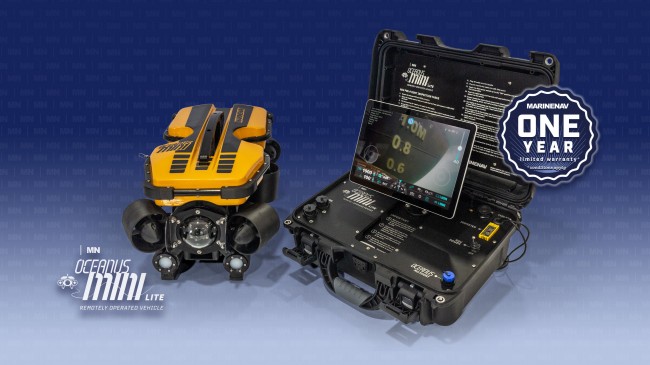

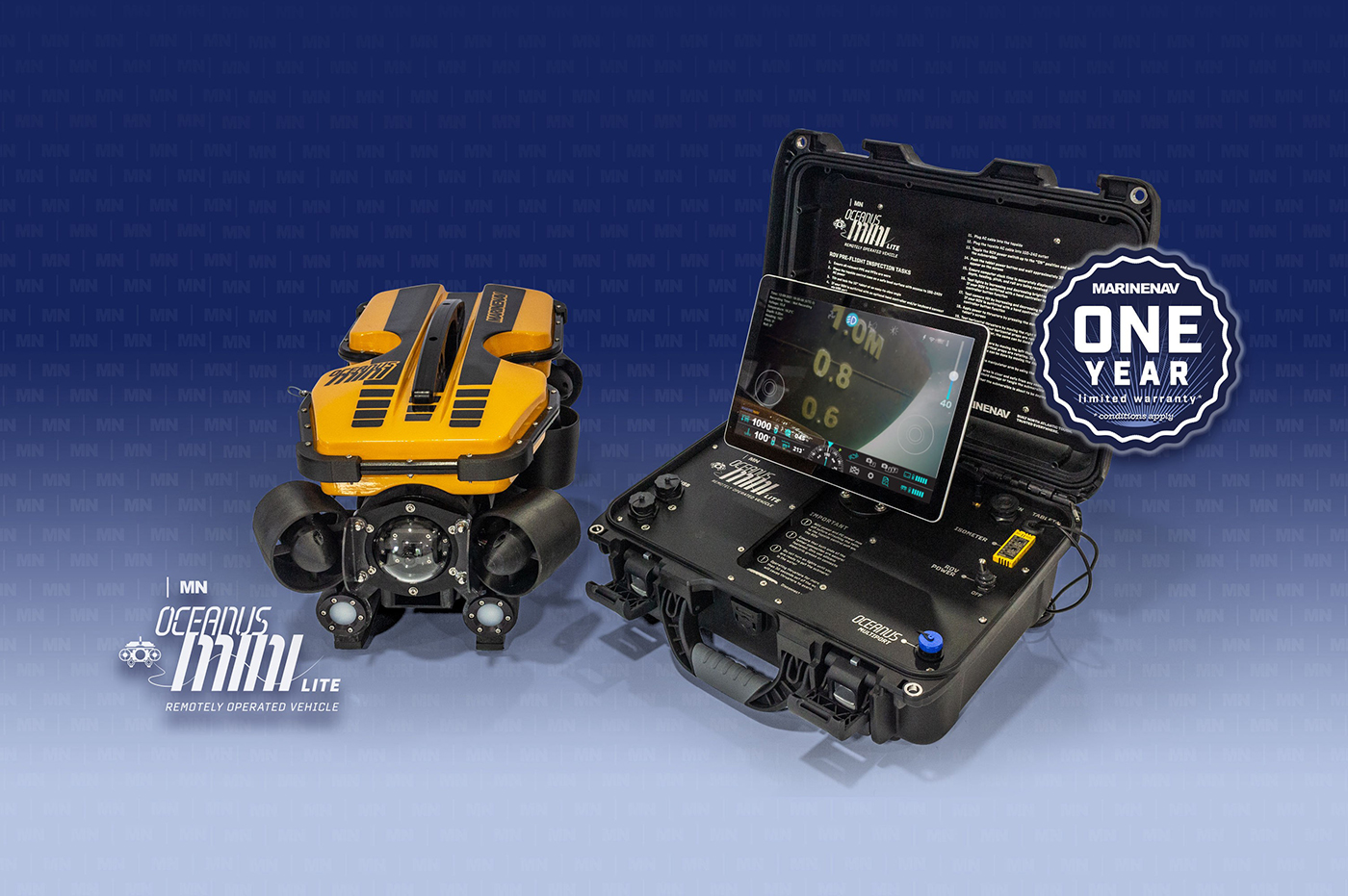

Oceanus Mini Lite ROV with topside control unit with a built-in removable tablet.

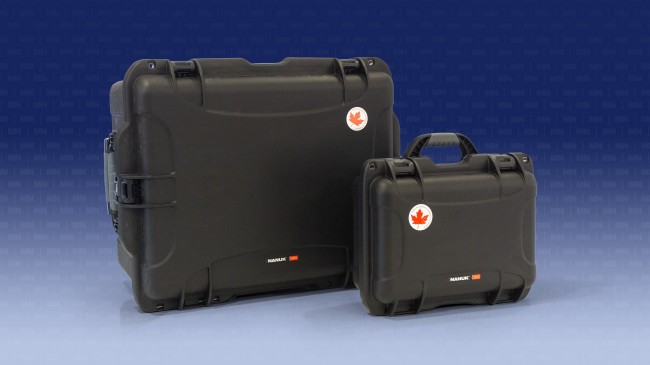

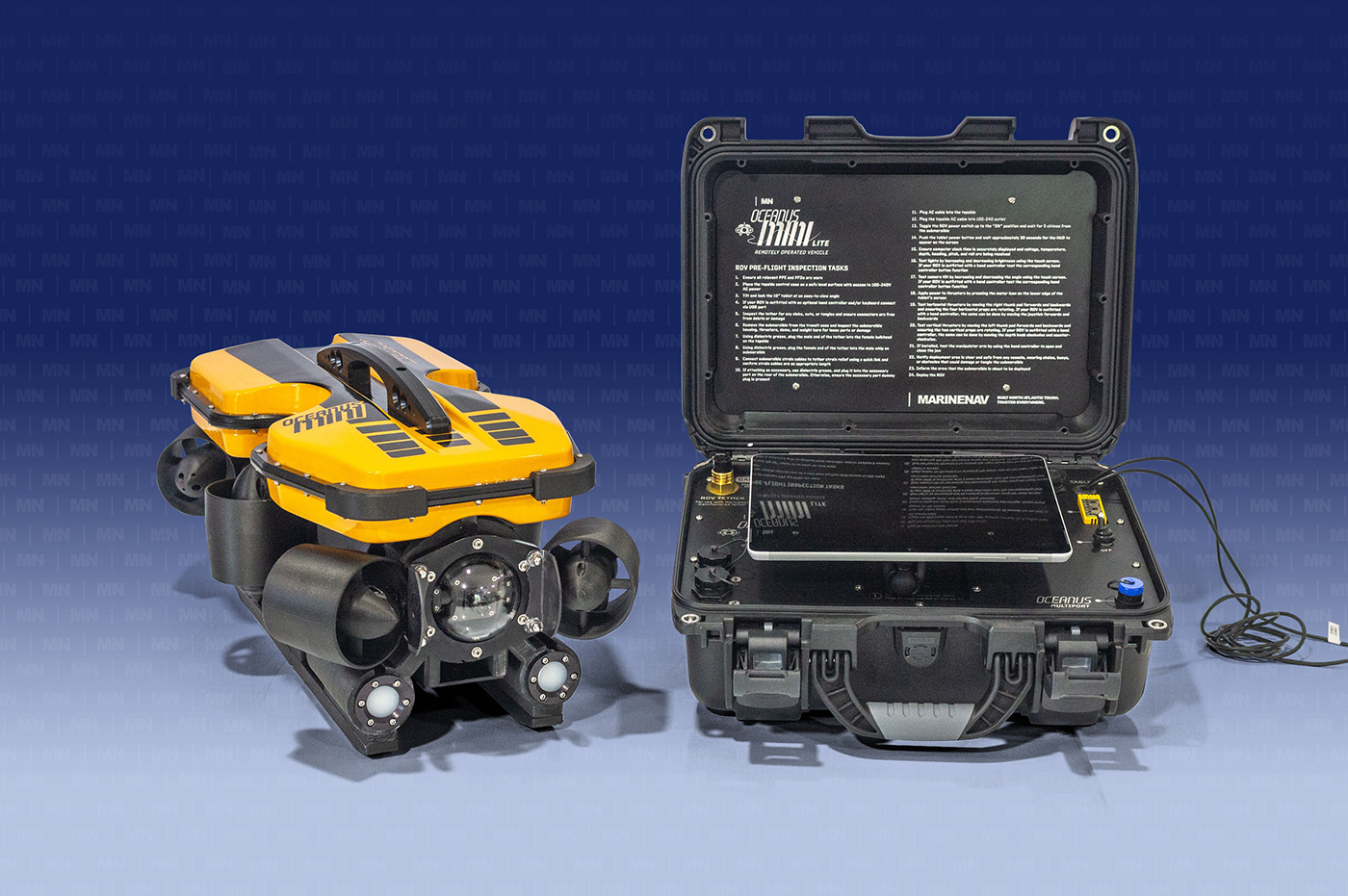

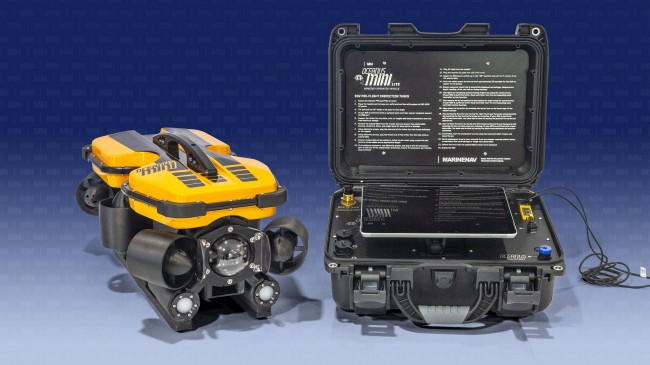

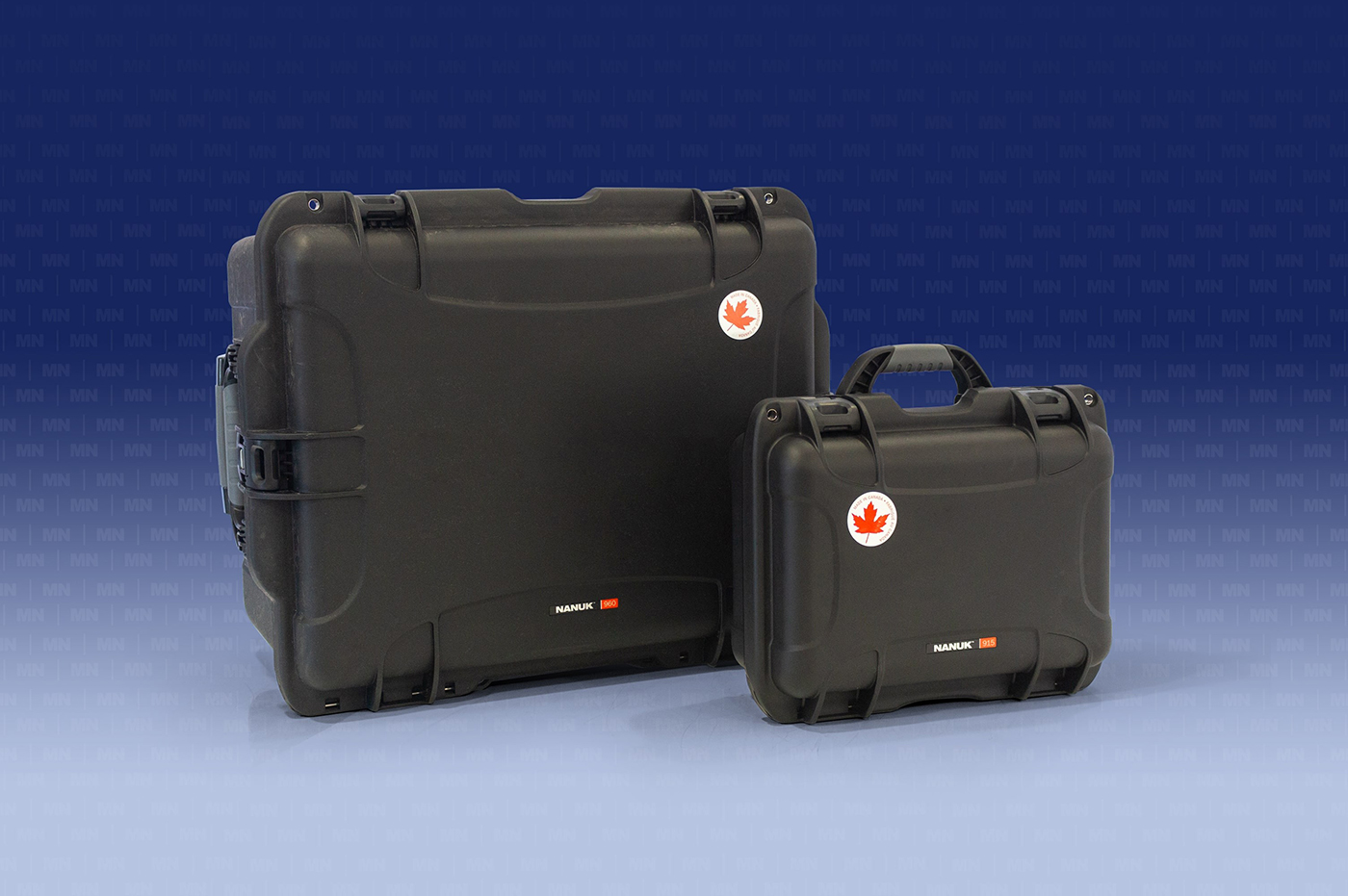

The Oceanus Mini Lite ROV and Topside are protected by IP-rated hardshell cases.

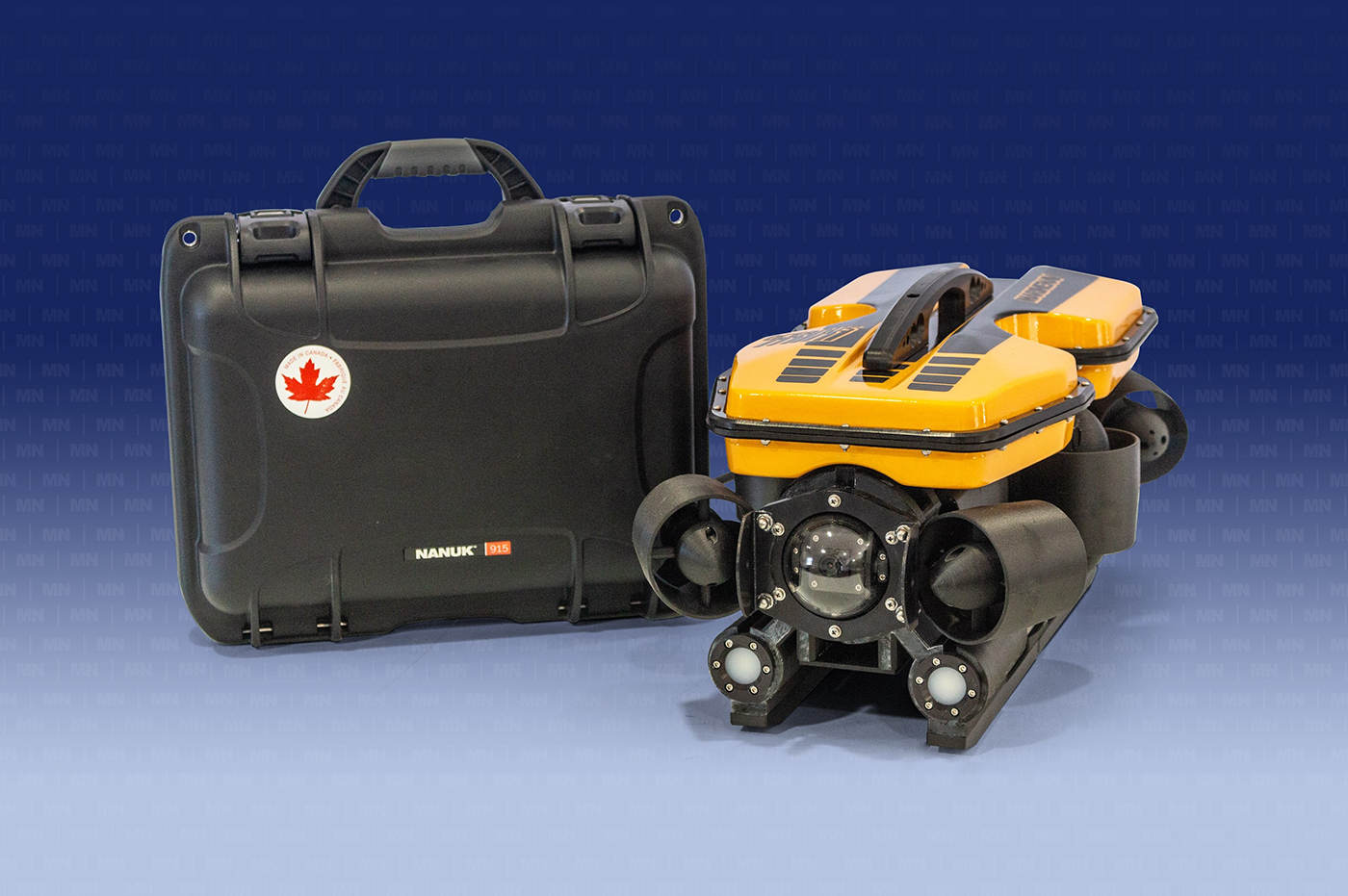

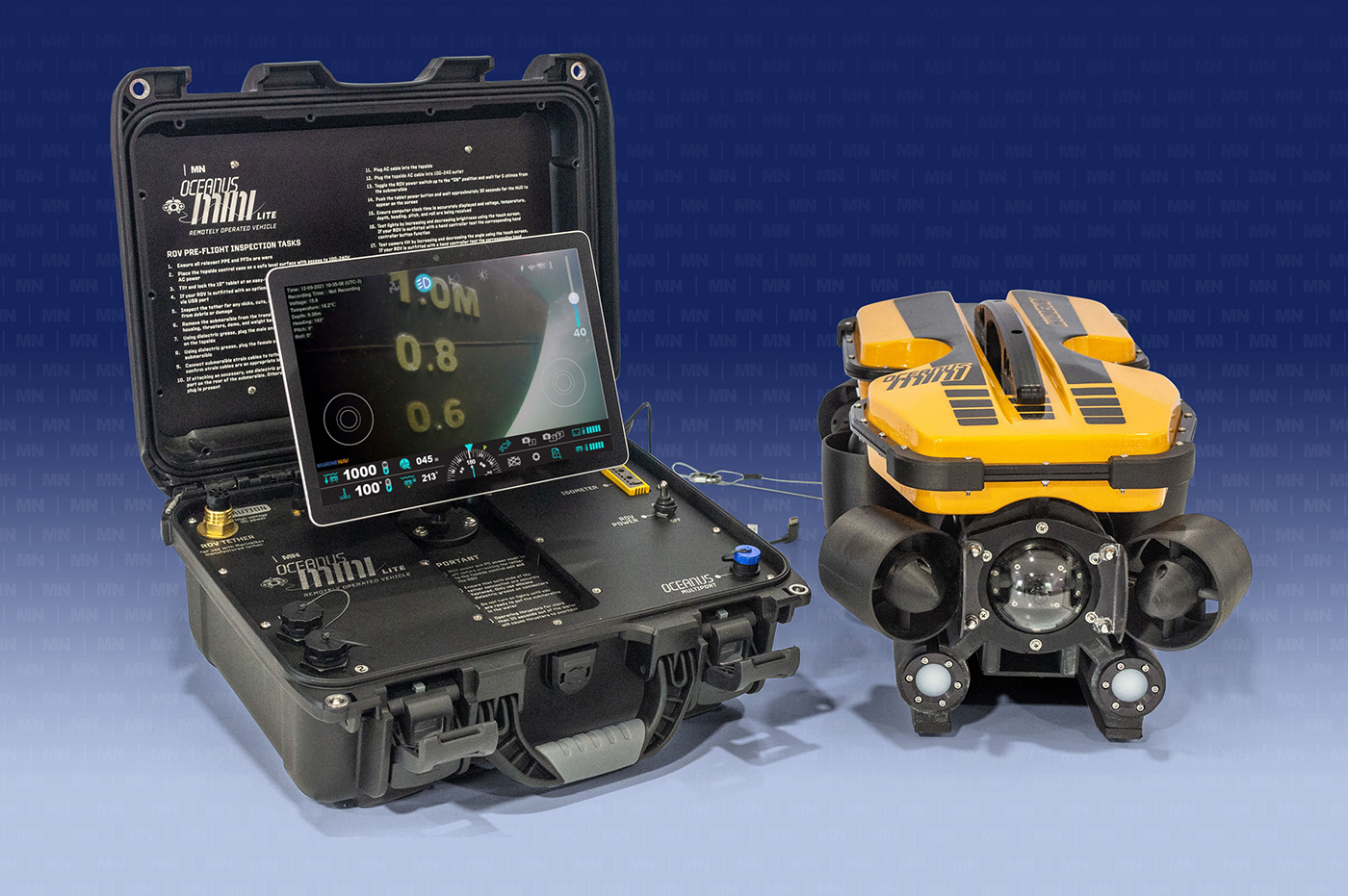

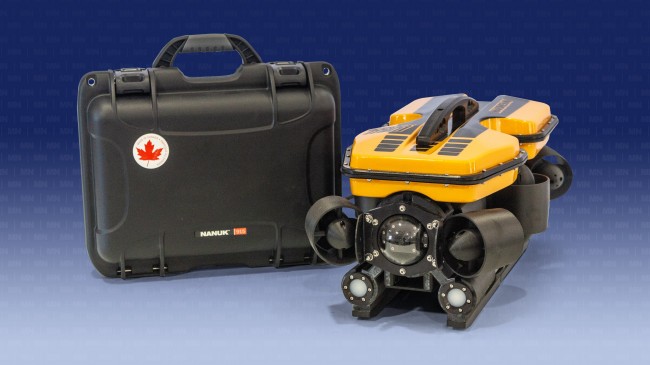

Size comparison between the Oceanus Mini Lite ROV and compact Topside ROV control system.

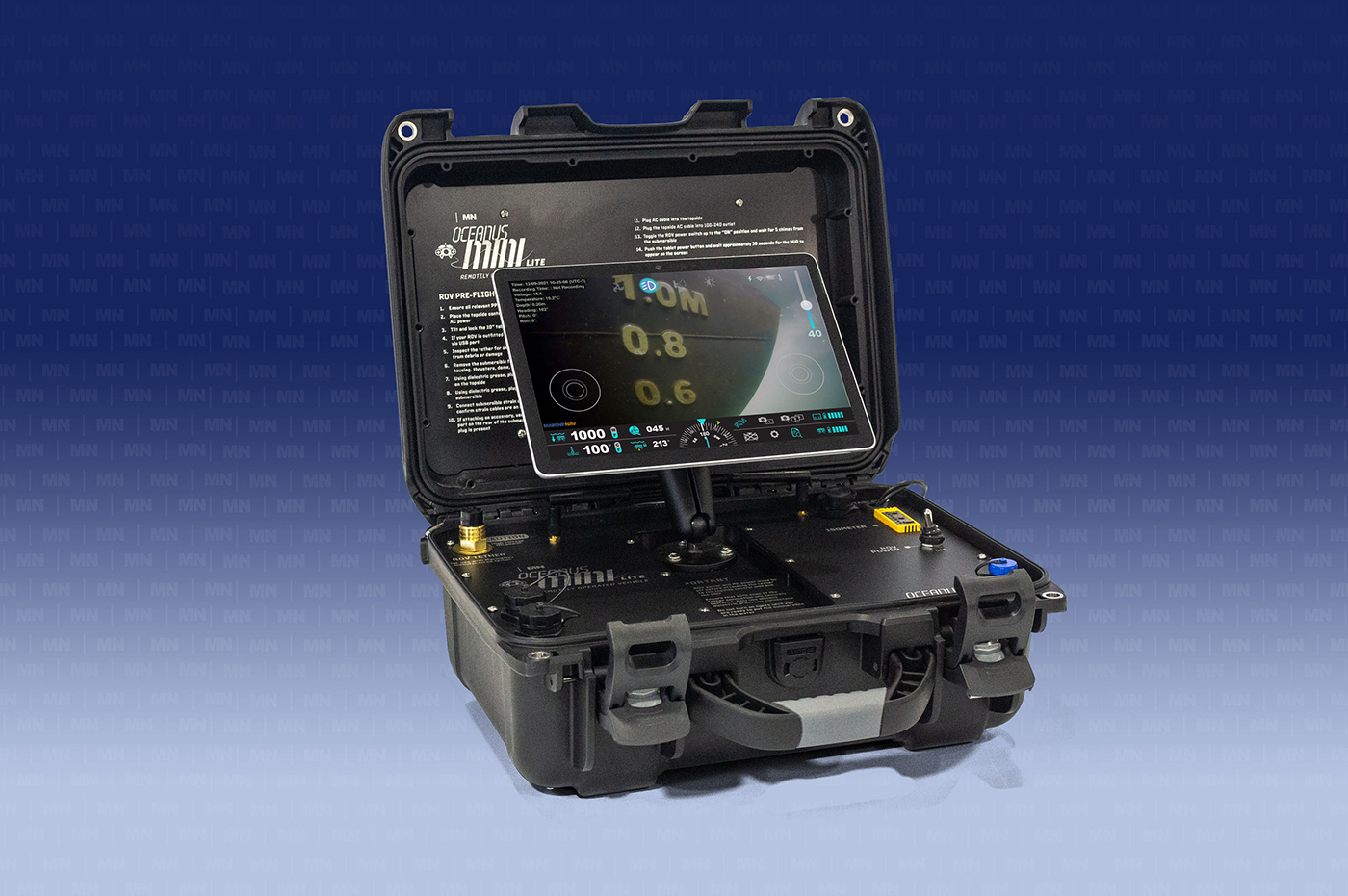

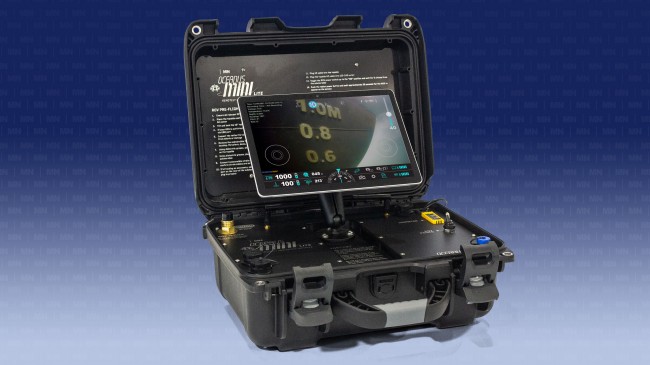

A removable PC tablet acts as the operational control system for the ROV and is mounted on a quick-release swivel arm.

Our proprietary Flight Control System software displays crucial ROV readings, streaming video and ROV control sensor pads on a 10-inch tablet display.

The Mini Lite ROV Topside control case is loaded with high-end features found in our more expensive ROV systems.

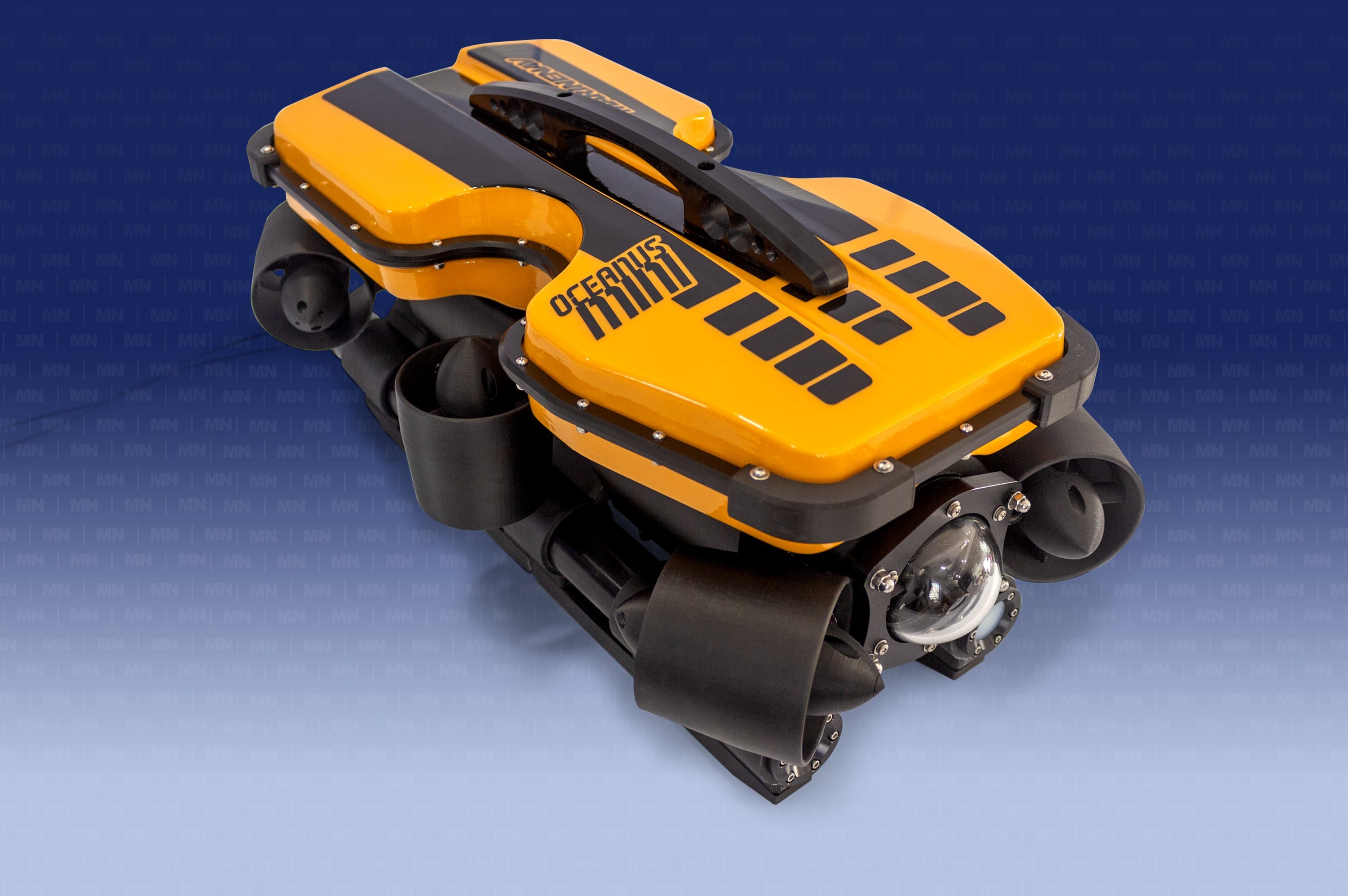

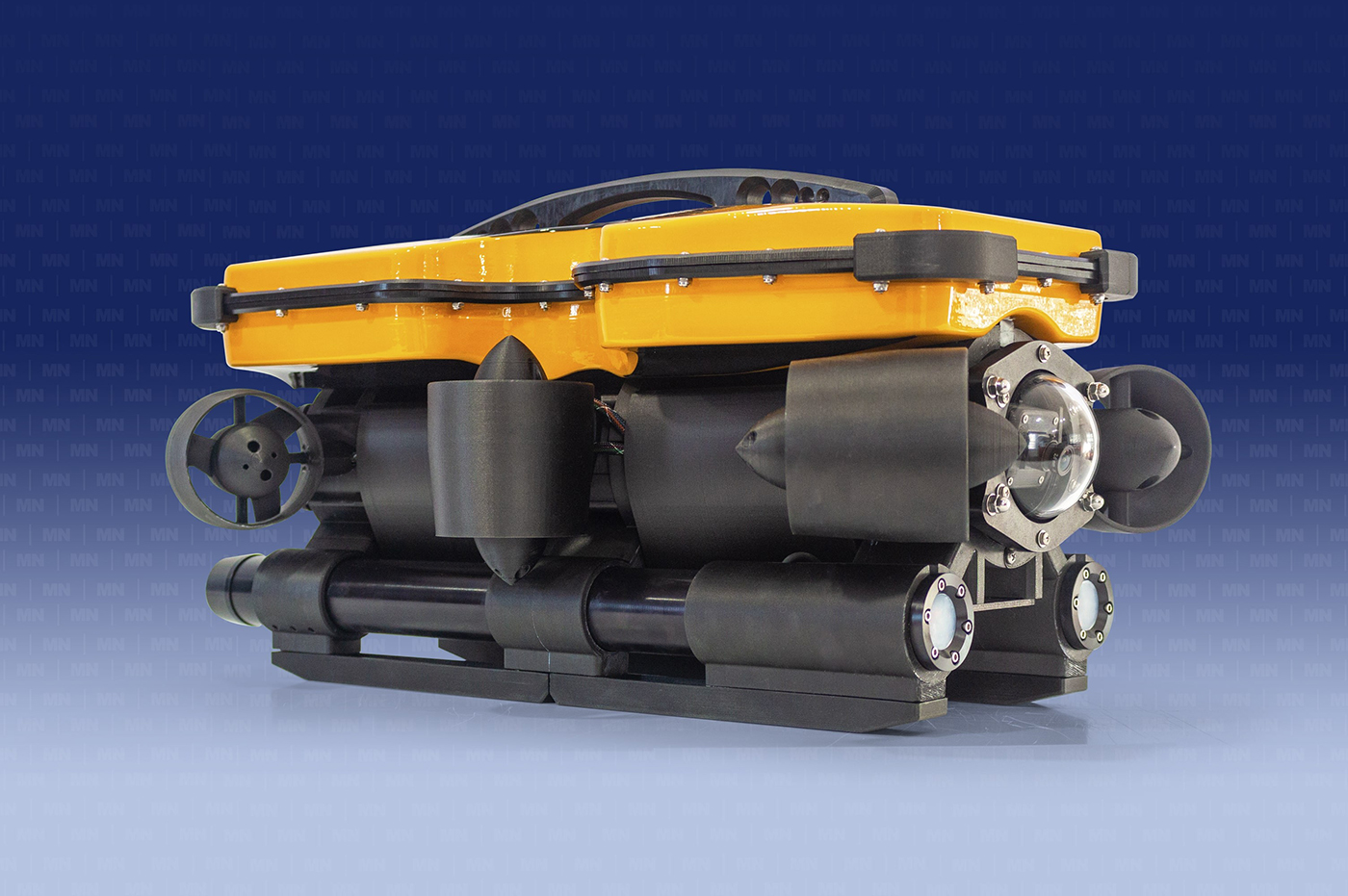

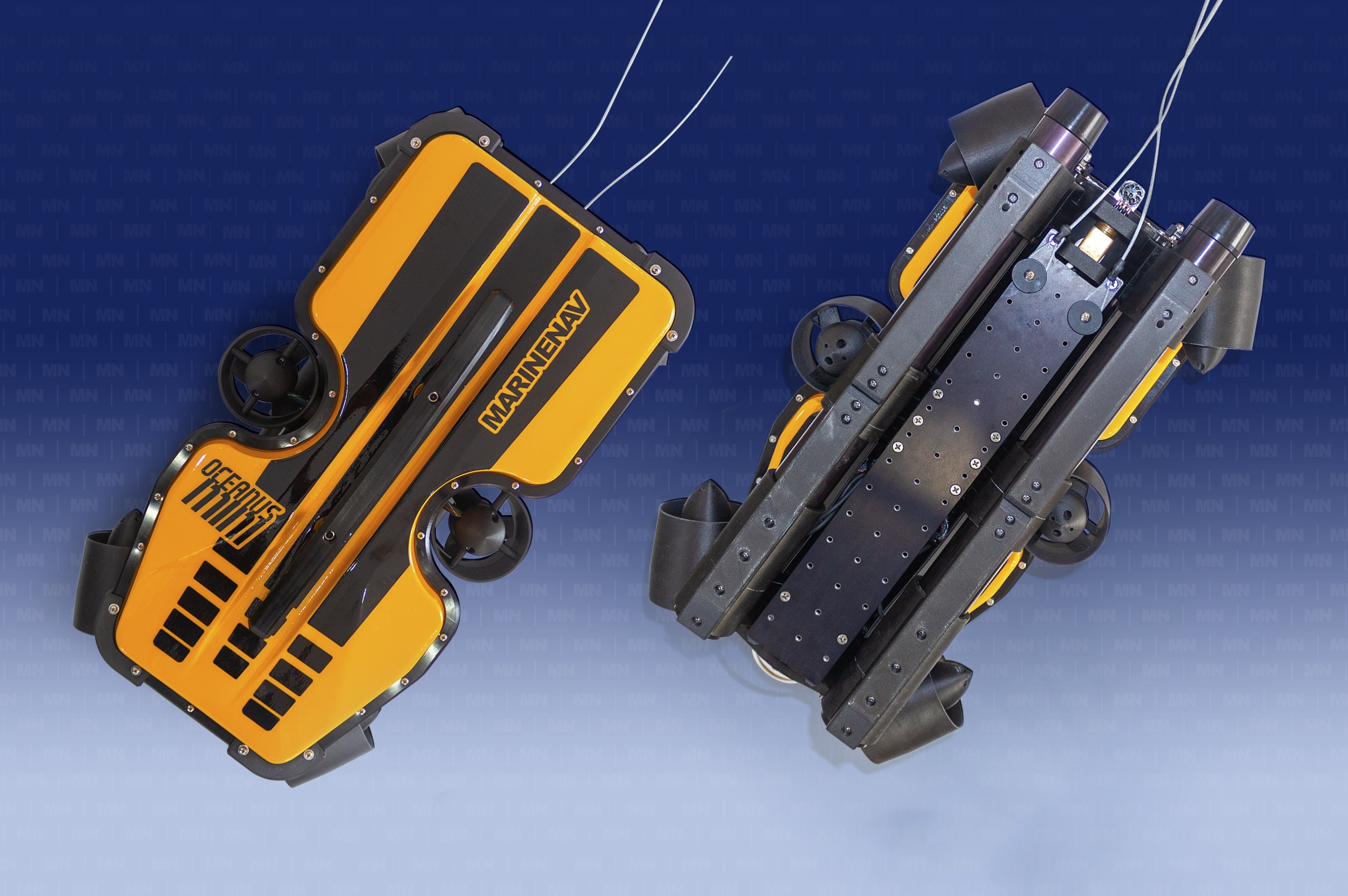

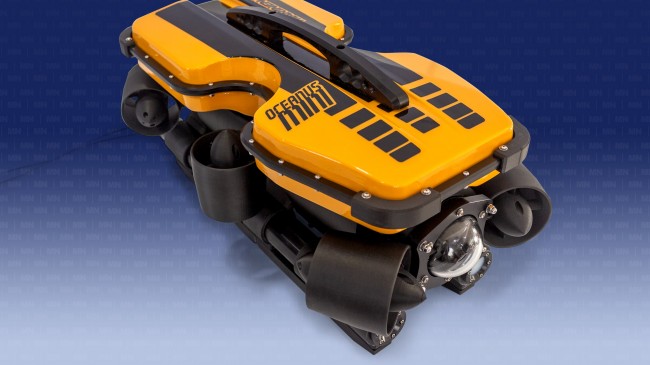

Six vectorized thruster design provides power and stability with top speed up to 4 knots.

Compact ROV weighing less than 9 kg.

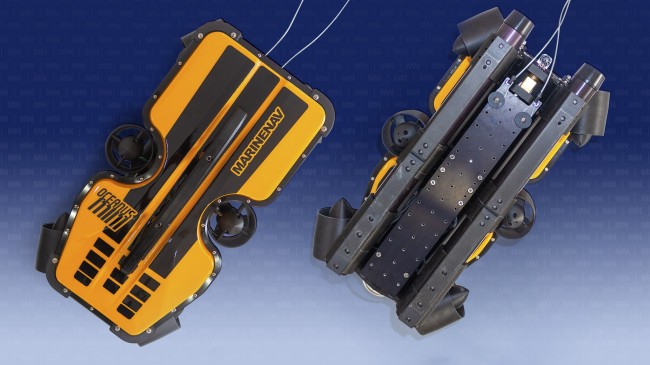

Constructed of marine-grade materials.

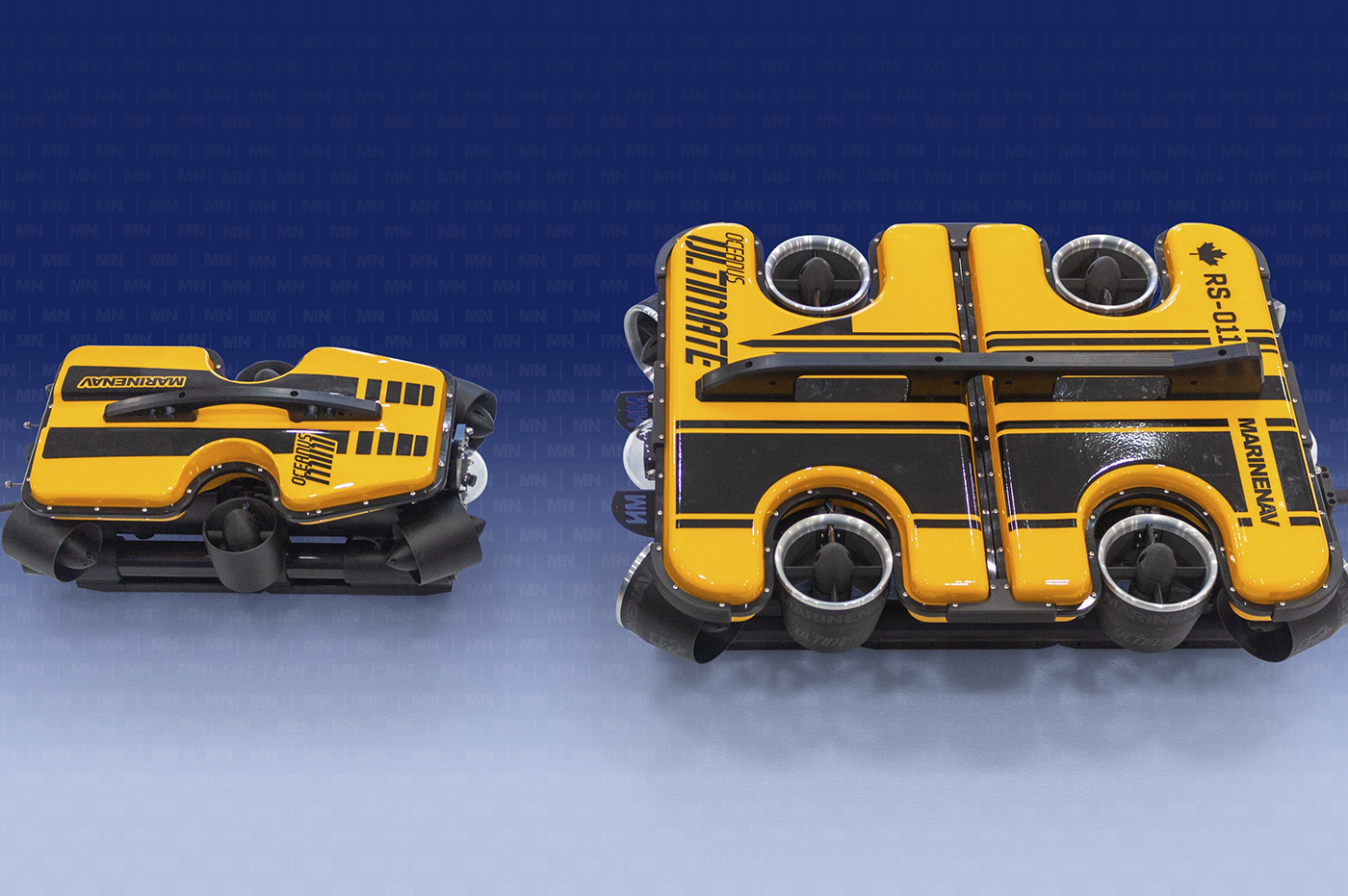

Oceanus Mini and Ultimate ROV size comparison.

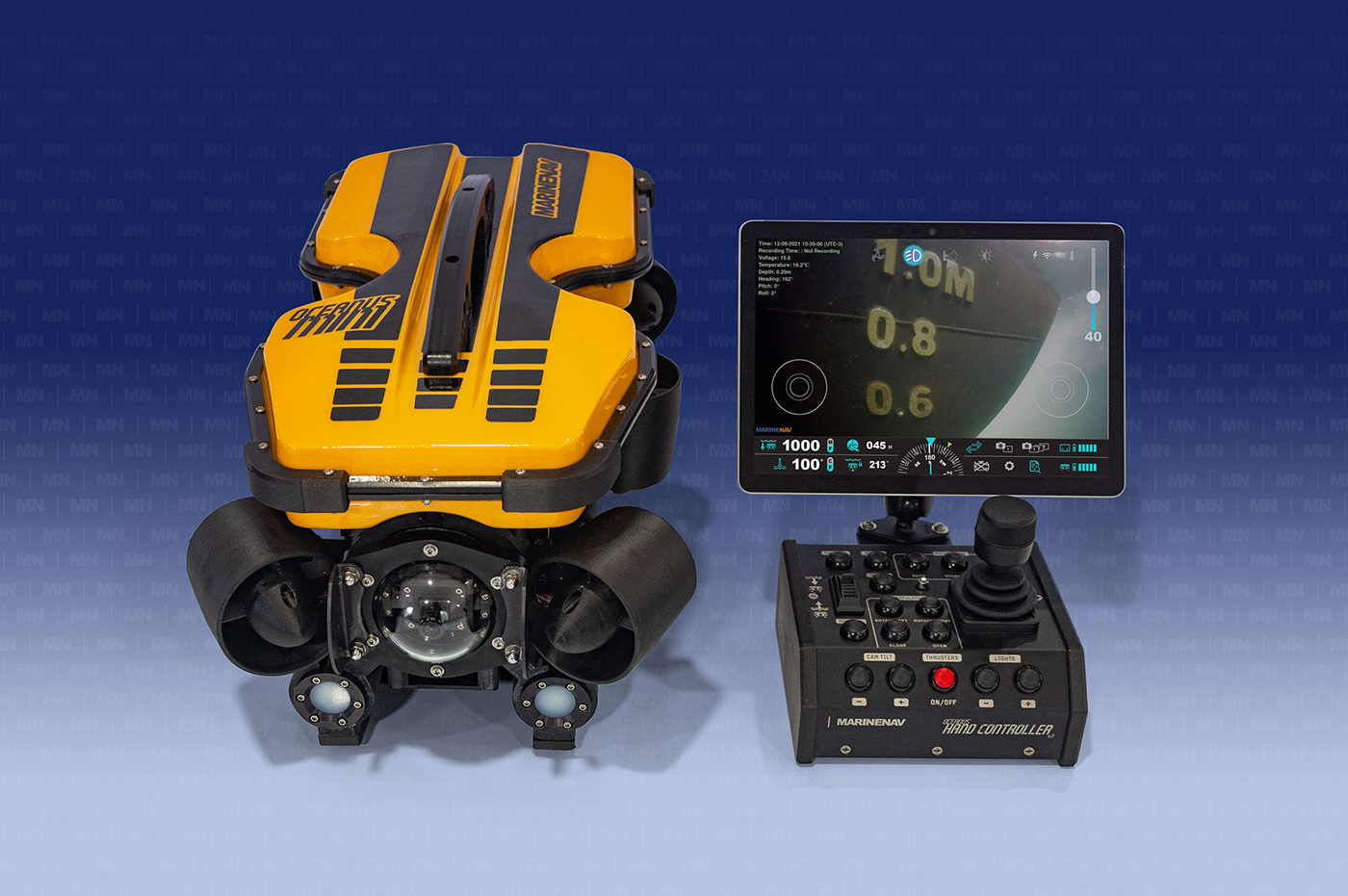

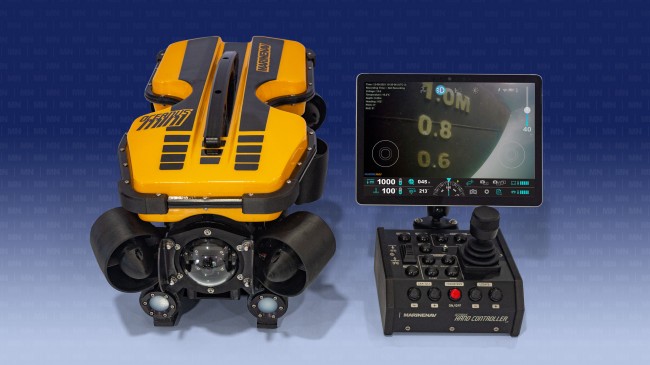

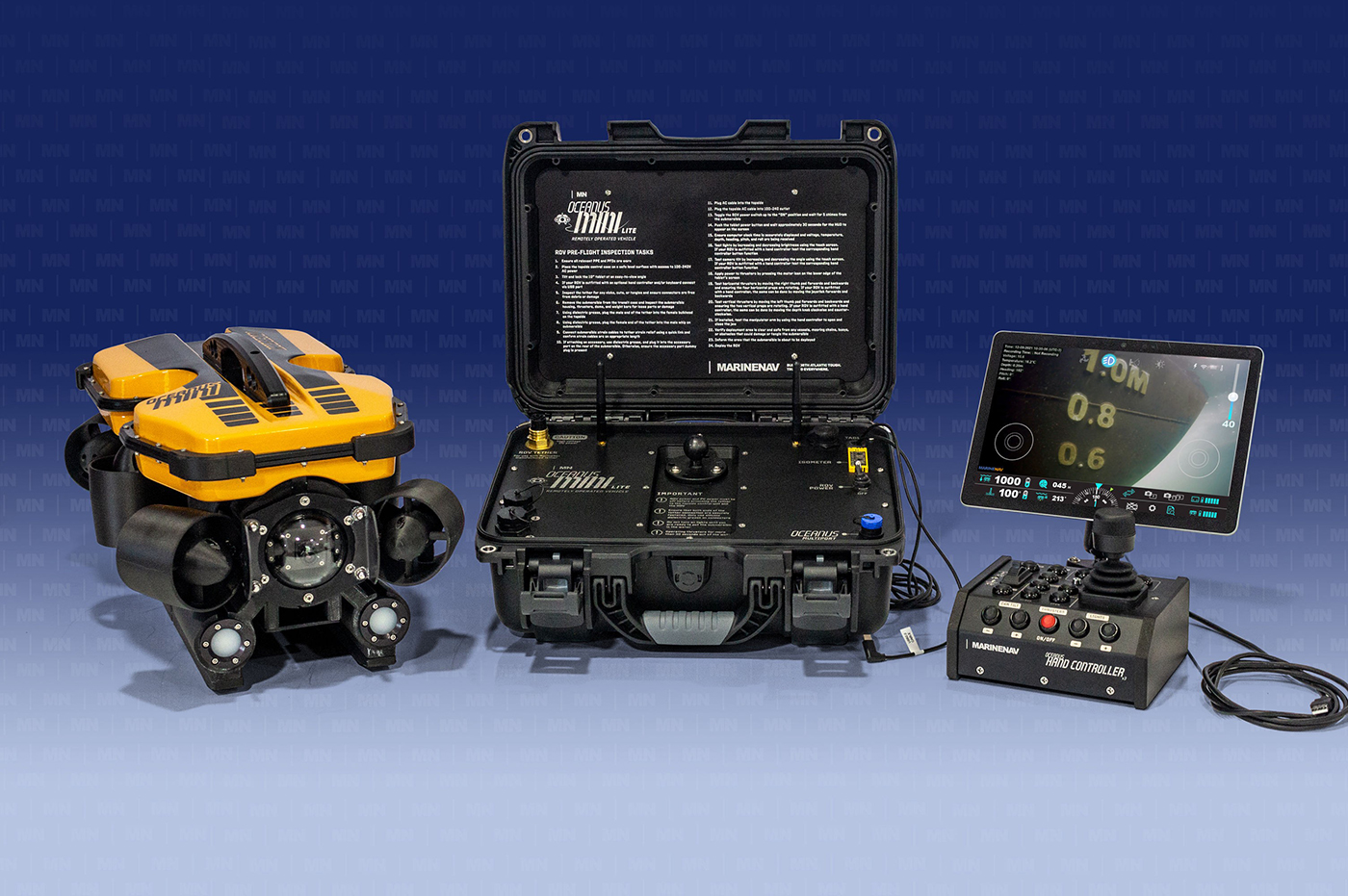

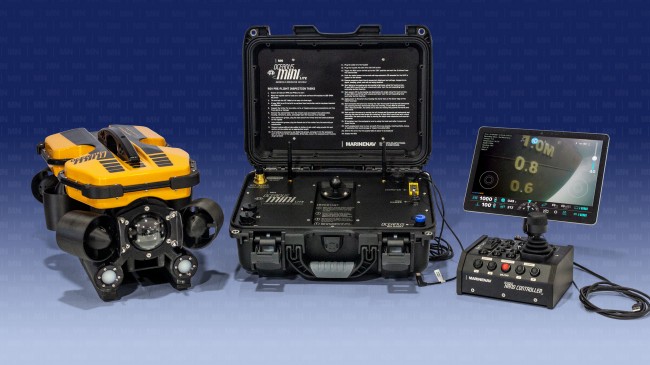

Upgrade your Mini-Lite ROV system with a v 3.0 Oceanus Hand Controller with a positionable tablet mount swivel arm.

Control your Mini-Lite ROV with a fully integrated v3.0 hand controller. Command buttons and a hall-effect joystick control all major ROV functions.



MarineNav’s Oceanus Mini-Lite ROV system includes the following:

  • Oceanus Mini-Lite ROV
  • Oceanus Mini-Lite ROV Topside Control system
  • Tablet with proprietary FCS-Lite software
  • 26-ballast weight bolts and nuts
  • Spare fasteners kit
  • IP-rated rugged hard-shell transport cases
  • ROV Operator manual and documentation
  • MarineNav’s 1-year limited warranty*






Entry-level ROV system...with room to grow

Includes the Oceanus Mini-Lite ROV, Topside ROV control case with PC tablet with MarineNav FCS-Lite operating system

The Oceanus Mini Lite ROV system is independently certified to operate to a maximum standard depth of 305 m (1000 ft). This feature-rich inspection class ROV is ideal for vessel and infrastructure inspection, locating and assisting ghost gear retrieval or visually documenting evidence. This user-friendly ROV system is the choice of novice and experienced pilots alike and features an extremely compact design for ease of transport.

The Oceanus Mini Lite Topside is protected by a one-year limited warranty extended to all components manufactured by MarineNav. The removable tablet is a third-party component with warranties as extended through the manufacturer. MarineNav's ROV is protected by a two-year limited warranty. Conditions apply.

Standard Features include

  • LATERAL AXIS ROV MOVEMENT

    An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability.

  • POWER OVER TETHER

    No ROV onboard battery for virtually unlimited dive times. Topside power input 110-240V AC, 300V DC out to ROV. The topside PC is rechargeable through connecting port built into the Topside Case.

  • MAXIMUM SPEED OF 4 KNOTS

    (Maximum speed test conducted with ROV fitted with performance float block and absence of all ballast weights).

  • DEPTH RATING OF 305m (1000 ft).

    The Oceanus Mini-Lite ROV is independently certified to a depth of 305m (1000ft).

  • ROV WEIGHT OF 8.62 kg (19 Lb)

    Open the main menu in the app and find the Extensions tab. Click on it to open the Extensions list.

  • 1080P HD VIDEO

    High definition camera with +/- 120° tilt functionality provides stunning image captures.

  • 2 X 1500 LUMEN FRONT LIGHTS

    Two front-facing ROV lights with incremental brightness controlled using the topside Flight Control Software. Upgrade to an optional handheld joystick controller to control light brightness with button commands.

  • PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE

    With an exterior measurement of 15.8" (L) x 12.1" (W) x 6.8" (H) and weighing 7.39 kg (16.3 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Mini Lite ROV system.

  • 64GB SOLID-STATE DRIVE TOPSIDE TABLET

    Device stores hours of content. Remove the PC tablet from the topside control case swing arm and download data to other devices.

  • TOUCH-SENSITIVE USER INTERFACE

    Touch-sensitive commands that display all ROV controls in a series of clear, easily viewed modules. Touch to engage function, enlarge module for precise function adjustment.

  • BUILT-IN WIRELESS COMMUNIACTION

    Wireless communication between PC tablet and topside case to a range of < 25m.

  • OCEANUS MULTIPORT

    Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors.

  • FLEXIBLE ATTACHMENT OPTIONS

    The Oceanus Mini-Lite ROV is compatible with Oceanus Mini / Pro topside control system and many RS485 ROV accessories.

  • COMPATIBLE WITH OCEANUS JOYSTICK HANDHELD CONTROLLER

    Control crucial ROV functions with a MarineNav Oceanus Joystick Handheld Controller by connecting to one of the Oceanus Mini-Lite available USB ports (Available as an optional system upgrade to either the Oceanus Hand Controller v2.1 or v3.0.).

  • NEUTRALLY BUOYANT TETHER

    An optional system upgrade, neutrally buoyant tether lengths available to a maximum of 500m length upon request. (Contract MarineNav for options and pricing).



Terms and conditions
* MarineNav's Oceanus Mini Lite topside is protected by a one-year limited warranty. The third-party tablet is covered by a third-party manufacturer's warranty. For ROV warranty to be valid all scheduled ROV maintenance must be followed according to manufacturers guidelines. Restrictions apply.
